Medical Face Masks Flammability Tester

Medical Face Masks Flammability Tester

Model :T428
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Medical Face Masks Flammability Tester
  • Medical Face Masks Flammability Tester

Overview

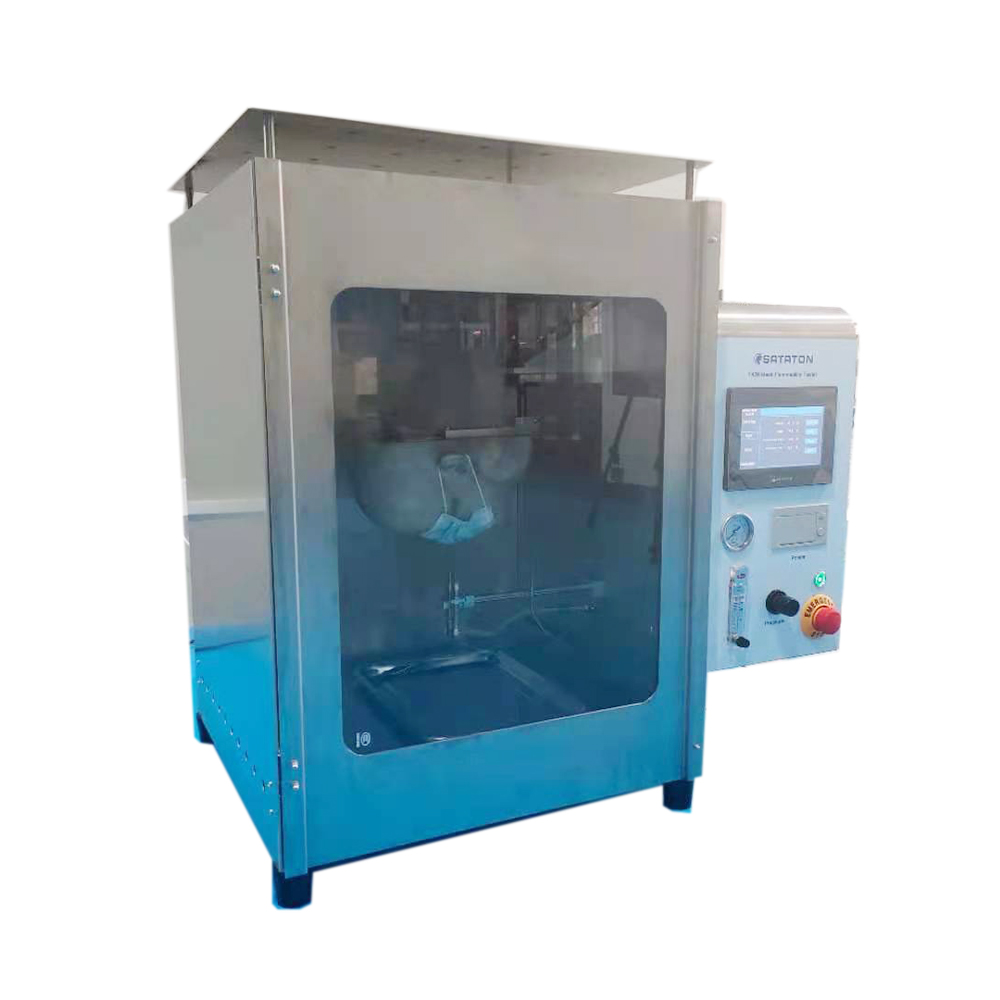

Medical face masks flammability tester is to determine the fire resistance performance of medical face masks and full face masks. The tester can provide a specific flame and make the dummy head with facepiece move to the flame under a specific speed. The operator can observe the effects of the flame on the masks and facepiece. The tester is suitable for medical face mask, respiratory protective equipment and full face masks.

flammability of medical face masks

Standards

EN 149, GB/T 19083, GB 2626, YY 0469

Feature

  • Adjustable burner height with automatic timer.
  • Equipped with flame temperature measuring device.
  • Automatic ignition system.

Specification

Item Detail
Moving speed 60±5mm/s
Flame height 40±4mm
Flame temperature Thermal couple Up to 850℃
Burner  TEKLU burner
Burner adjust height 30mm
Distance between burner and mask 20±2mm
Timer 0-9999.9s ±0.1s
Power supply 220 AC  50Hz
Dimension 950mm×400mm×850mm
37.4inch×15.75inch×33.46inch
Net weight 65 kg
143.3lb

Configuration

No. Product
2042801 Medical face mask flammability tester
2042802 TEKLU burner
