Mask Particle Filtration Efficiency Tester

Mask Particle Filtration Efficiency Tester

Model :T443
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Mask Particle Filtration Efficiency Tester
  • Mask Particle Filtration Efficiency Tester
  • Mask Particle Filtration Efficiency Tester

Overview

Face mask particle filtration efficiency (PFE) tester is test machine to determine the particulate filter penetration and filtration efficiency for respiratory protective devices, face masks and melt blown fabrics. The tester with particle generator can provide sodium chloride particles and paraffin oil particles. It can measure the particle penetration, filtering efficiency and the breathing resistance delta P. It is widely used in quality control, research and development, certification, manufacturing or testing industry, etc.

Standard

ASTM F2100 9.3, ASTM F2299, EN149, EN143, JIS/T 8151, NIOSH 42 CFR84 NBR150, GB 2626, GB/T 32610, GB/T 19083

Feature

  • Provide test flow by dry&clean compressed air outside. Internal voltage stabilization and flow stabilization devices to ensure the stability of the detected flow
  • 7” or 10″ touch screen, Equipped printer for data printing, data can be saved or printed. External memory card, export data without worrying about data loss.
  • Differential pressure of the filter material obtained through the static pressure ring of the upstream and downstream of test chambers, adopt high-precision differential pressure sensor to get accurate, stable data.
  • Easy to understand and operate. Place the filter paper in the fixture and press the button to adjust the test flow, the system will automatically test the resistance and efficiency through the controller (PLC).

Specification

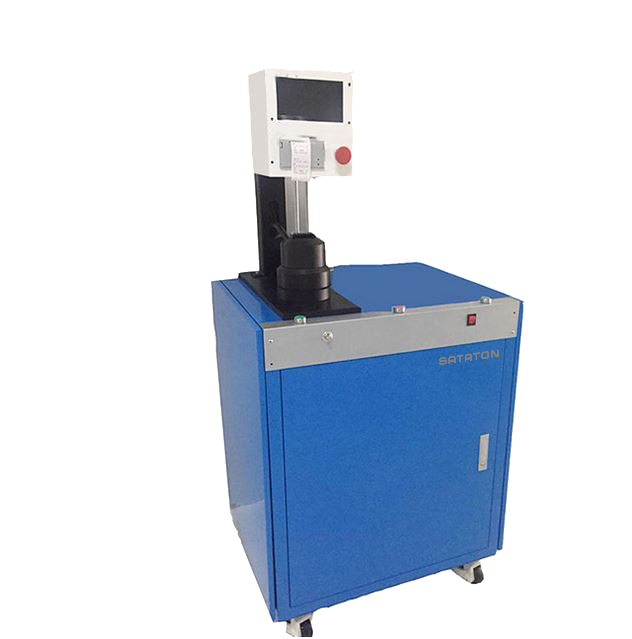

T443A for ASTM F2100 & ASTM F2299

Item Detail
Test aerosol PSL
Flow rate 8-100 L/min ±2.0%
Test pressure range 0-1000Pa ±1.0%
Particle countering range Six channel for 0.1μm, 0.2μm, 0.3μm, 0.5μm, 1.0μm, 5.0μm
Test area 100cm2
Sample clamp Penumatic
Display 10″ Touch screen control panel
Data export Embedded printer
Power supply 220V 50-60 Hz
Dimensions 700mm×600mm×1520mm
27.56inch×23.62inch×59.82inch
Net weight CA. 85kg
CA. 187.39lb



T443Z for EN 149,  NIOSH, GB 2626

Item Detail
Salt particle CMD 0.075μm
Oil particle CMD 0.185μm
Flow rate 8-100 L/min ±2.0%
Particle concentration detection range (0.001-200)mg/m³
Test pressure range 0-1000Pa ±1.0%
Test aerosol DEHS, Paraffin oil, NaCl
Test area 100cm2
Particle counting Photometer
Display 10″ Touch screen control panel
Data export Embedded printer
Power supply 220V 50-60 Hz
Dimensions 700mm×600mm×1520mm
27.56inch×23.62inch×59.82inch
Net weight CA. 85kg
CA. 187.39lb

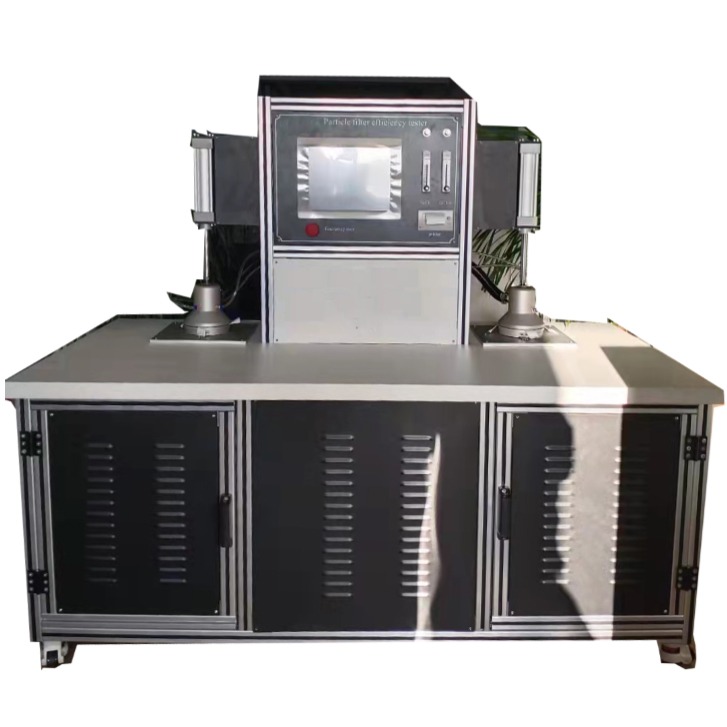

T443 for Two Channels for

ASTM F2100 9.3, ASTM F2299 EN149, EN143, JIS/T 8151, NIOSH-42 CFR84 NBR 150, GB 2626, GB/T 32610, GB/T 19083

Item Detail
Aerosol Channels 2, Salt&Oil + Latex Spheres
Aerosol detector 0.1-10μm Scatter laser photometer, 0.1-5μm particle counter
Control mode Laptop computer + English operation software+7” Touchscreen
Flow rate 15-100 L/min, accuracy±2.0%
Resistance test range 0-1000Pa, accuracy 0.1pa
Test air flow cross-sectional area 100cm2
Filtration efficiency test range 0 to 99.999%, resolution 0.001%
Test time Simultaneous efficiency and resistance test 70s
Aerosol concentration detection range 0.001-300mg/m³
Data printing Yes
Power supply Single phase, 220 V 50HZ
Dimension 1150 x 650 x 1200 mm
Net weight 120kg

Configuration

No. Product
2044301 Face mask particle filtration efficiency tester
2044302 NaCl particle generator
2044303 Oil particle generator
