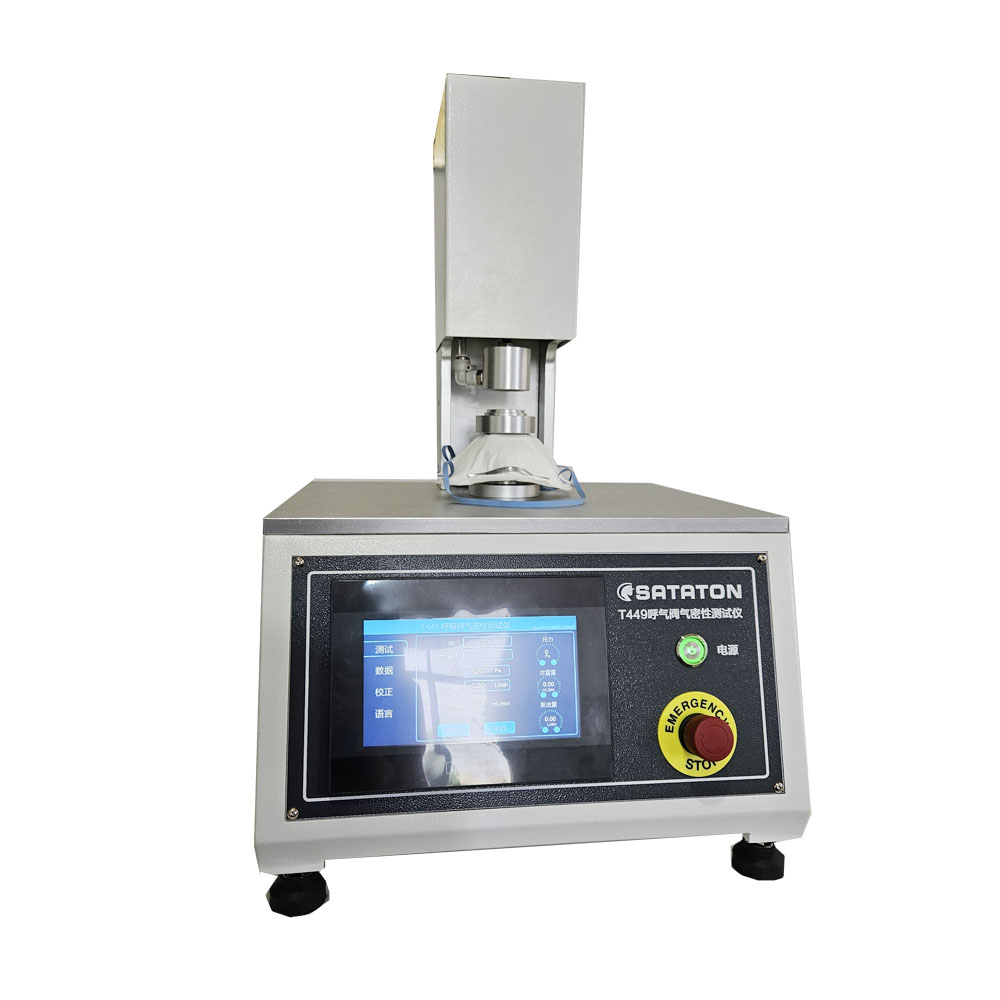

Mask Exhalation Valve Leakage Tester

Mask Exhalation Valve Leakage Tester

Model :T449
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Mask Exhalation Valve Leakage Tester
  • Mask Exhalation Valve Leakage Tester

Overview

Mask exhalation valve leakage tester is professional designed to measure the amount of leakage between the exhalation valve and the valve seat. By providing certain air flow according to the standard, the measured pressures. The respirator valve leakage test apparatus can be used to test air tightness of exhaltion valve as a part of air-purifying, or air-supplied respirators.

Standards

GB 2626, NIOSH 42 CFR Part 84

Features

  • Special sample grip, easy to use.
  • High Accuracy differential pressure sensor, digital display of sample leakage and current test pressure.
  • High accuracy air flow control, real-time display for air flowrate
  • Lower noise vacuum pump provide stable air flow.

Specification

Item Detail
Vacuum pumping rate 2L/min
Capacity of buffer container ≥5L
Pressure range -1000Pa-0, ±1%
Range of flowmeter 0-100ml/min, ±1%
Control system PLC+7″ touch screen
Power supply 220V, 50/60 HZ
Dimension 600mm*520mm*750mm
Weight 40kg

Configuration

No. Product
2044901 Mask Exhalation Valve Leakage Tester
