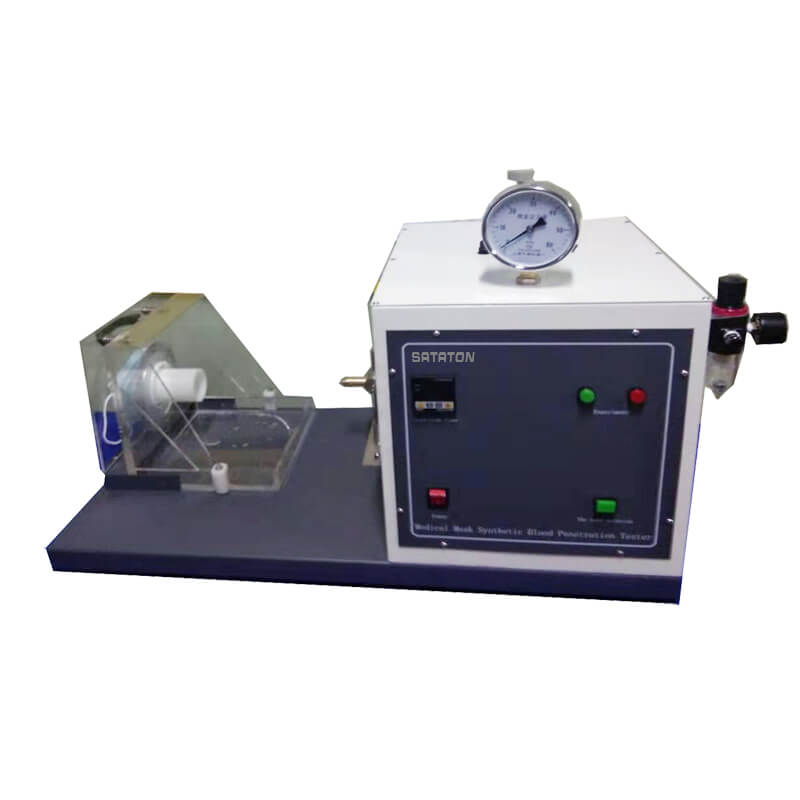

Medical Masks Synthetic Blood Penetration Tester

Medical Masks Synthetic Blood Penetration Tester

Model :T439
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Medical Masks Synthetic Blood Penetration Tester
  • Medical Masks Synthetic Blood Penetration Tester

Overview

Masks synthetic blood penetration resistance tester also called splash resistance tester is to evaluate the penetration – splash resistance property of medical face masks by the impact of a small fixed volume of a high-velocity stream of synthetic blood which is projected horizontally. The pneumatically controlled valve will simulate the splatter of blood or other body fluid to disburse at the specimen mask. The tester is suitable to determine the synthetic blood penetration of materials or certain materials used in medical face masks.

resistance of medical face masks to penetration by synthetic blood

Standards

ISO 22609, ASTM F1862, YY/T 0469, YY/T0691, GB/T 19083

Feature

  • Integration valve and trimming controller.
  • High transmittance visual box.
  • Splattering speed can be preset as requirement.

Specification

Item Detail
 Cannula  Ф0.84mm, 12.7mm
 Splatter distance  305mm
 Fluid velocity  450cm/s, 550cm/s, 636cm/s
 Blood pressure  10.7kPa, 16.0kPa, 21.3kPa
 Testing condition  21±5℃,85±10%
 Power supply  220 AC 50Hz
Dimension 800mm×400mm×600mm
31.50inch×15.75inch×23.62inch
Net weight 40 kg
88.18lb

Configuration

No. Product
2043601 Face masks synthetic blood penetration tester
2043602 Compressor
