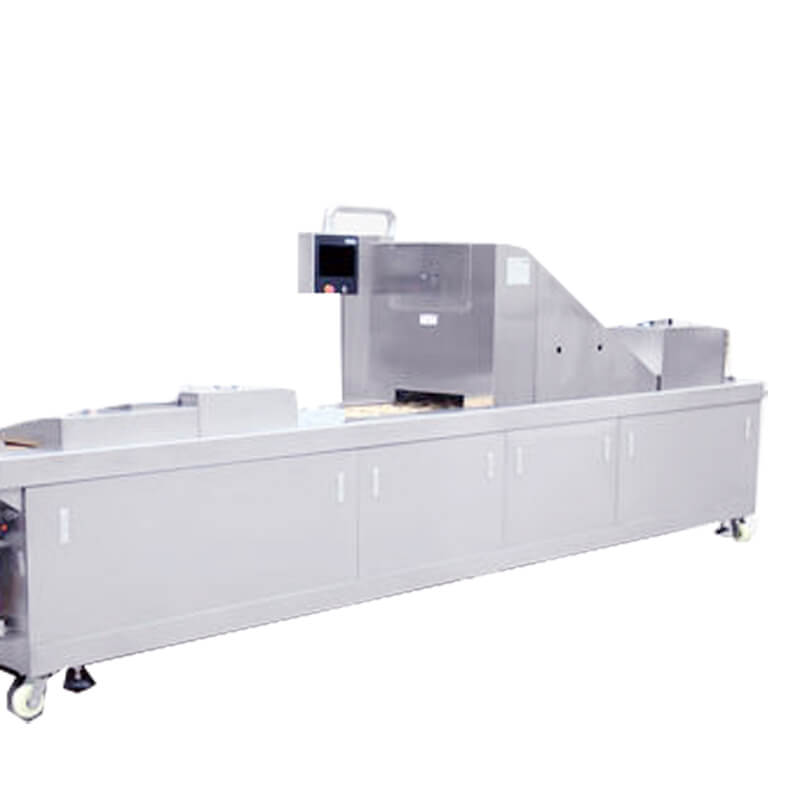

Dolomite Dust Clogging Test Equipment

Dolomite Dust Clogging Test Equipment

Model :T447
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Dolomite Dust Clogging Test Equipment
  • Dolomite Dust Clogging Test Equipment

Overview

Dolomite dust clogging test equipment also called mask clogging tester is the machine to determine usage life of particle filtering respiratory mask. By simulating the sinusoidal breathing of the usage, the test machine can measure the breathing resistance and filter penetration of the tested sample. It is useful test machine to evaluate the usage life of respiratory mask and real performance of the mask in working situation.

Standards

EN 149, EN 143, EN 13274-8, EN 405, EN 1827, EN 12941, EN 12942, EN 14387

Feature

  • Analysis software with English interface.
  • User friendly panel is easy to operate.
  • Equipped humidity and temperature parts for specimen.
  • Equipped electronic dust deposition indicator.
  • Support filter test and dummy head test.
  • Support continuous flow, sinusoidal flow and conditioned exhaled air test.
  • Support breathing machine.

Specification

Item Detail
Aerosol DRB 4/15 Dolomite
Aerosol Concentration 400±100 mg/m3
Flow Adjustable
Breathing machine 2.0L/stroke
Test sample Sample or sample on dummy head
Power supply 220V 50Hz
Dimension 5500mm×900mm×1400mm
Net weight 450kg

Configuration

No. Product
2044701 Dolomite dust clogging test machine
2044702 Breathing machine
2044703 Humidity conditioner
