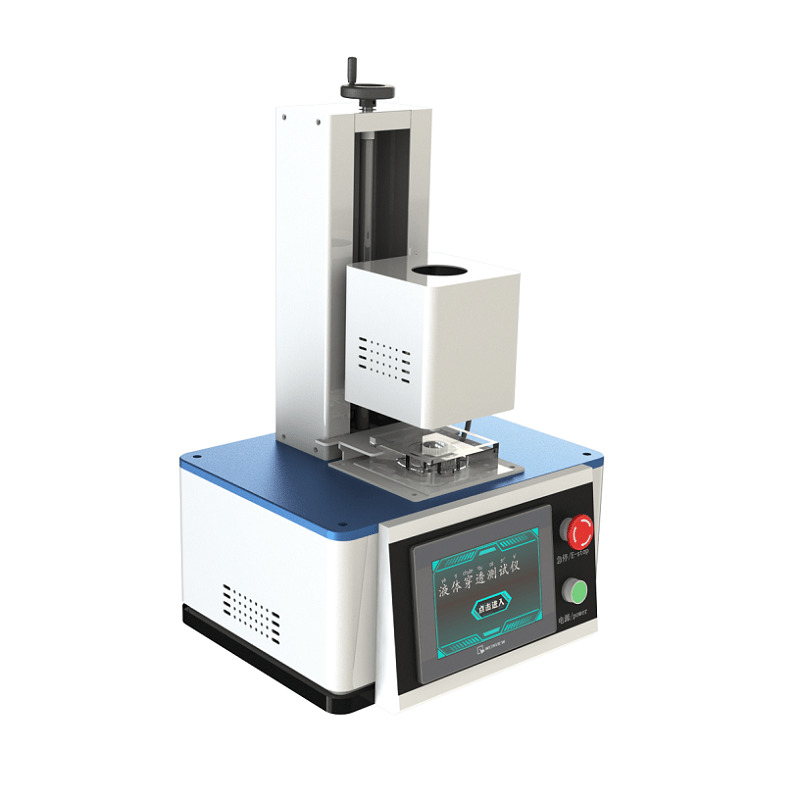

Liquid Strike-through Time Tester

Liquid Strike-through Time Tester

Model :T535
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Liquid Strike-through Time Tester
  • Liquid Strike-through Time Tester

Overview

Liquid strike-through time tester is designed to determine the time taken for a known volume of liquid to pass through the specimen as strike-through time (STT). By measuring the strike-through time and repeated strike-through time of simulated urine, the machine can be intended for quality control and comparison of STT for different nonwoven coverstocks.

Standards

ISO 9073-8, ISO 9073-13, GB/T 24218-13, GB/T 24218-8, FZ/T 60017

Feature

  • Equipped corrosion-resistant electrodes ensures the long time service life.
  • Magnetic exit valve is easy to clean and made of fluorine material.
  • Touch screen control panel with Chinese and English interface is easy to operate..
  • Equipped thermal printer to output the test data.

Specification

Item Detail
Burette 50ml
Distance between funnel and specimen Adjustable
Strike-through plate Transparent arylic sheet  100mm×100mm×25mm, 500±5g
Time counter Automatic timer with 0.01s accuracy
Sample 125mm×125mm
Power supply 220V 50Hz
Dimension 400mm×300mm×450mm
Net weight 29kg

Configuration

No. Product
2053501 Liquid strike-through time tester
