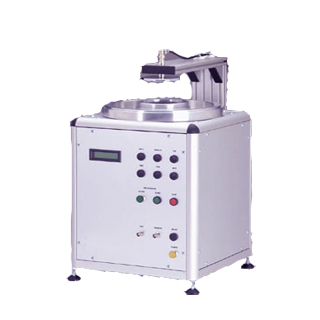

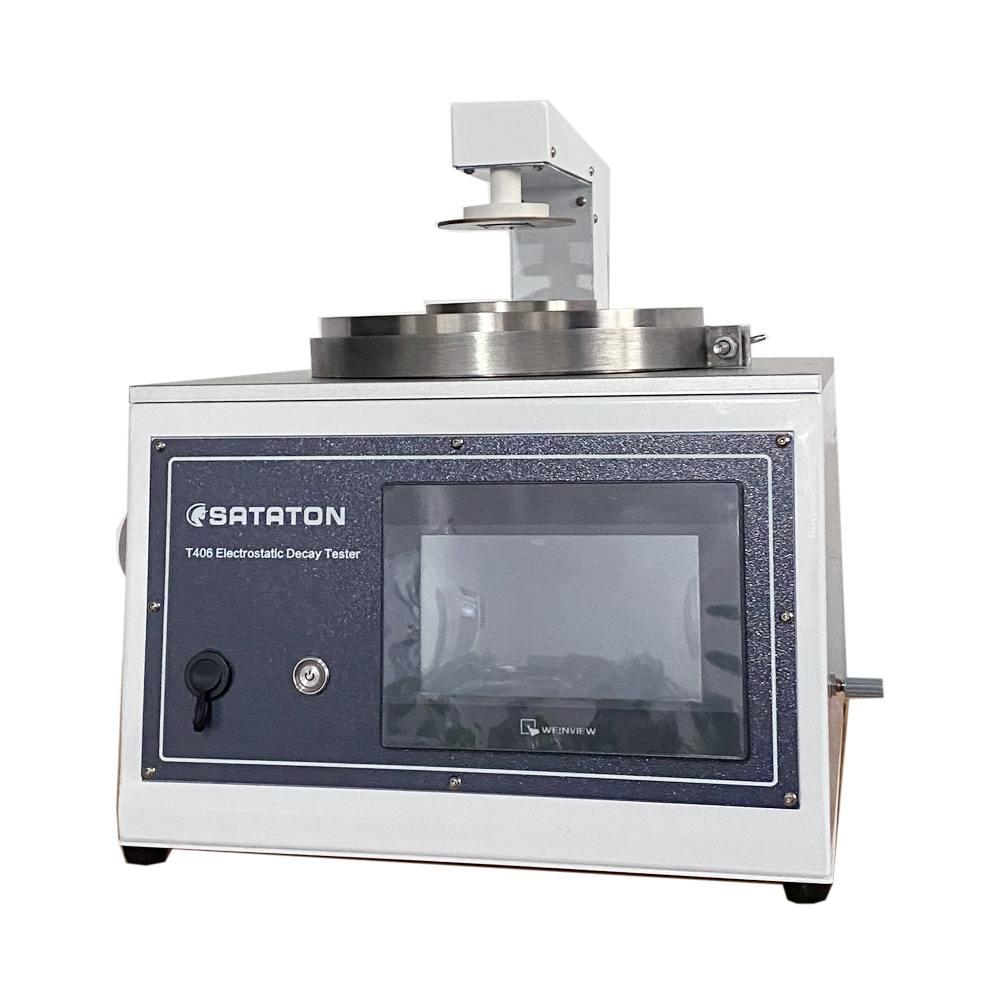

Electrostatic Decay Tester

Electrostatic Decay Tester

Model :

T406
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Electrostatic decay tester is professional designed to determine the electrostatic properties of textile or materials for personal protective equipment according to induction charging method of EN 1149.3. The tester is to measure the electrostatic dissipative performances, such like half decay time, shielding factor and others. It is suitable for textile which is conductive or contains conducting elements and can be widely used for quality evaluation in electrostatic sensitive industry.

Standard

EN 1149.3

Feature

  • No-destroying testing specimen.
  • Allowing to textile, coated materials, films, paper, packaging materials.
  • Compact structure design is easy to operate and transport.
  • Automatically calculating the half decay time, shielding factor.

Specification

Item Detail
Voltage range 0-2kV
Field electrode Φ70mm
Support ring Φ100mm
Specimen holder Φ250mm
Field measuring probe Φ30mm
Power supply 220V 50-60 Hz
Dimensions 350mm×350mm×470mm
13.78inch×13.78inch×18.50inch
Net weight  45 kg
99.21lb

Configuration

No. Product
2040601 Electrostatic decay tester
2040602 Computer with analysis software
2040603 Static Neutraliser
