Static Honest Meter

Static Honest Meter

Model :

T401
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

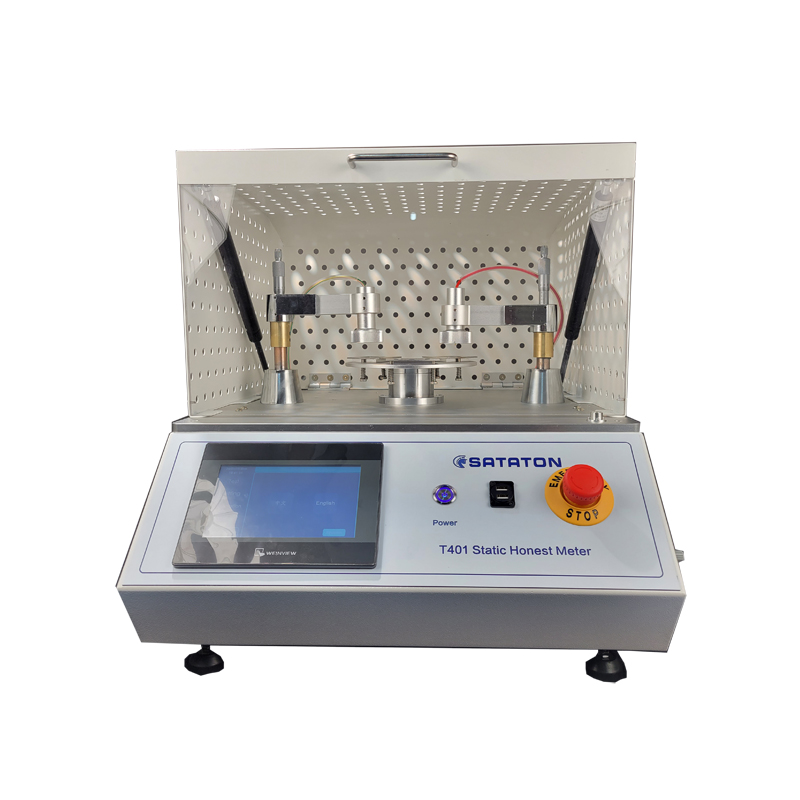

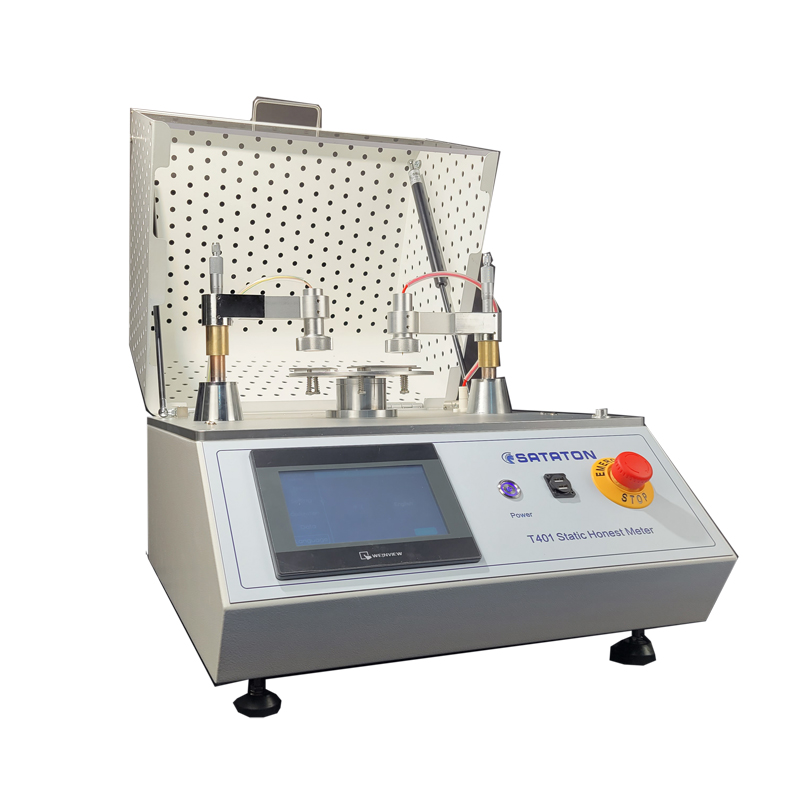

Static honest meter is professional designed to determine the attenuation of static electricity, corona discharge time, static voltage attenuation half-life, static decay curve and other electric property of fiber, yarn, fabric, textile or plate materials. It is suitable for measuring the diffusibility of static in the testing samples.
Static honest meter,attenuation of static electricity tester, textile corona discharge time test apparatus

Standards

GB/T 12703.1  FZ/T 01042  JIS L1094

Feature

  • Separation design of tester and controller is easy and safe to operate.
  • Digital voltmeter will display the testing results.
  • Automatically stop for high voltage and motor.
  • Optional data analysis software can provide more detailed information and results.

Specification

Item Detail
Voltage range 0-10KV
Accuracy ±10%
Half-life range  0-99.99s
Rotational rate 1500rpm
Discharge time Up to 99.99s
Power supply 220V  50Hz
Dimension 440mm×280mm×450mm
17.32inch×11.02inch×17.72inch
Net weight  35kg
77.16lb

Configuration

No. Product
2040101 Static honest meter
2040102 Laptop with analysis software
2040103  Safety shield
