Static Decay Analyzer
Model :T402
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
Overview

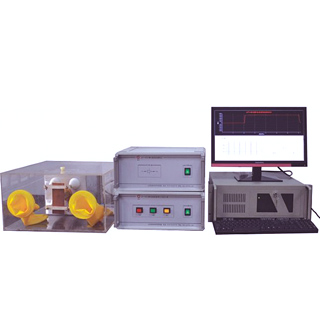

Static decay analyzer/meter is to measure the static decay of material and products. The analyzer includes three parts: the control unit which supplies the high voltage power and measuring the charge changes, the test fixture with the faraday cage can hold different formed specimens, and the environmental chamber which provides a certain temperature and humidity testing environment. It is the best choice for new material R&D, QC of manufacturing and certification for mechanisms.
Standards
GB 19082, IST 40.2, MIL STD 3010, NFPA 99, ANSI/ESD S541
Feature
- Separation structure design to provide stable and reliable testing performance.
- Automatic test will reduce the mistakes.
- High decay time resolution.
- Real-time display and analysis software is easy to operate and better for data storage.
Specification
Item | Detail |
Charge voltage | 0-±5KV |
Decay time range | 0-99.99h |
Decay time resolution | 0.01s |
Charge time | 0-99.99h |
Power supply | 220V 50/60 Hz |
Dimension | 780mm×590mm×450mm 30.71inch×23.23inch×17.72inch |
Net weight | 40kg
88.18lb
|
Configuration
No. | Product |
2040201 | Static decay tester |
2040202 | Environmental chamber |
2040203 | Test fixture |
2040204 | Testing and analyzing software |
