Moisture Vapor Transmission Tester

Moisture Vapor Transmission Tester

Model :

T403
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Moisture Vapor Transmission tester is the measurement tool for determining the moisture vapor transmission rate of fabrics, papers, plastic films, other sheet materials. By providing certain temperature and humidity testing condition and certain rotary speed, the operator can measure the weight changes of dish contains (water or desiccant) to gain the values of water vapor transfer through permeable and semipermeable materials.

Standards

ASTM E96  JIS L1099  GB/T 12704  GB 12014

Feature

  • Stable control system for temperature and humidity.
  • Adjustable air flow rate can meet different requirements.
  • Full types dishes for different testing standards.
  • Automatic type with computer control system can meet higher requirements.

Specification

Item Detail
Temperature range 0-130℃
Temperature resolution ±0.5℃
Humidity range 38%-98%
Humidity resolution ±2%
Air flow  0.3-0.5m/s
Rotary speed of sample 0-10rpm
Power supply  220V 50Hz
Dimension 520mm×720mm×1400mm
20.47inch×28.35inch×55.12inch
Net weight 85kg
187.39lb

Configuration

No. Product
2040301 Moisture vapor transmission tester
2040302 Auto moisture vapor transmission tester

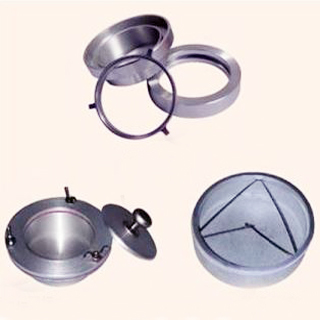

2040303  Dish kit
2040304 Digital balance
