Vertical Flammability Tester

Vertical Flammability Tester

Model :

Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details


Vertical flammability tester is to determine the flame resistance of textiles, children’s sleepwear, decorative materials, coatings and other products. It is recommended by many standards to measure the flame resistance, after flame and afterglow characteristics and can provide data to describe the response of materials, products, or assemblies to heat and flame under controlled laboratory conditions which are simulated the practical using situation.
Vertical flammability tester, ASTM D6413 flammability tester, ASTM D6413 flammability test device, CALIF TB-117 flammability tester, FTMS 191-5903 flammability test apparatus


GB/T 5455  ASTM D6413  ASTM D6413  CALIF TB-117  CPAI-84  FTMS(Federal Test Method Standard)191-5903

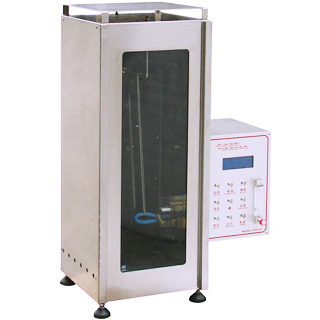

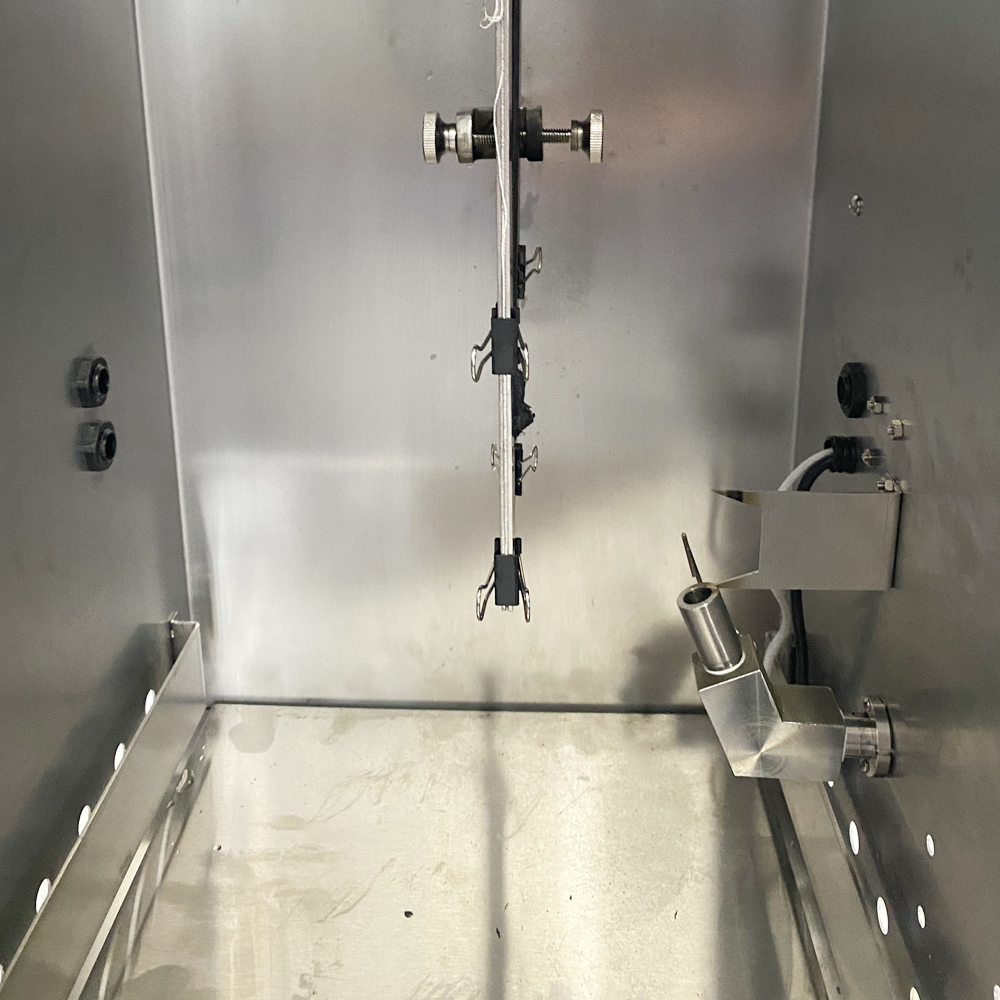

  • Stainless steel chamber with heat resistant glass window is easy to clean up and observe the testing process.
  • Side-place the control box with LED screen displays the testing results.
  • Independent timers for after flame and afterglow are convenient to control and record the testing results.


Item Detail
Timer of after flame  0-999.9s ±0.1s
Timer of afterglow 0-999.9s ±0.1s
Exposure time 12s
Flame height  Adjustable
Diameter of burner 11mm
Dimension of specimen holder 445mm×76mm(External) 356mm×51mm(Internal)
Power supply  220V 50Hz
Dimension 350mm×450mm×890mm
Net weight 41kg


No. Product
2038101 Vertical flammability tester
2038102 Specimen holder
2038103 Weight kit
