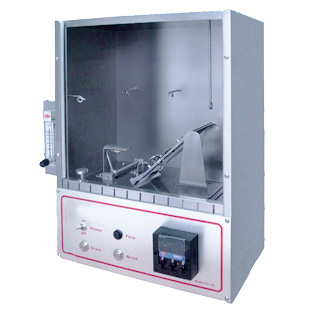

45° Flammability Tester

45° Flammability Tester

Model :

Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details


45° flammability tester is professional designed for evaluation of the flammability of textile fabrics by measuring the spreading time of flame on the 45 degree direction after ignited. It is recommended for testing the flame resistance of textile fabrics, protective clothing, children’s sleepwear and other materials.
45° flammability tester, Textile flammability tester, CFR 16 Part 1610 test device,ASTM D1230 test apparatus


ASTM D1230  CFR 16 Part 1610  GB/T 14644  FTMS 191-5908  CAL TB 117  NFPA 702


  • Stainless steel test chamber with heat resistant glass viewing window is easy to observe the testing conditions.

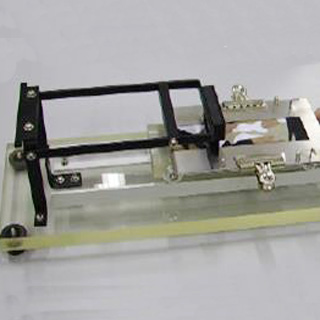

  • Fully equipped with accessories, such as specimen holder, brushing device.
  • Adjustable length of flame with standard 16mm standard gauge makes testing more convenient and easy-to-operate.
  • Preset ignition time meets different testing requirements.
45° flammability tester, Textile flammability tester, CFR 16 Part 1610 test device,ASTM D1230 test apparatus2


Item Detail
Angle of inclination 45°
Specimen holder  U-shape 205mm×76mm (inner 152mm×38mm)
Stop thread height  9.5mm
Ignition time Adjustable with 0.1s accuracy
Time counter Automatic timer with 0.1s accuracy
Igniter Needle valve burner
Indicator finger Stainless steel typical indicator finger
Gas shield Stainless steel typical gas shield
Terminal point Automatic stop when reaching stop thread
Power supply 220V 50Hz
Dimension 420mm×260mm×526mm
Net weight 29kg


No. Product
2038201 45° flammability tester
2038202 Specimen holder
2038203 Brushing device
2038204 Drycleaning machine
2038205 #50 Cotton sewing thread
