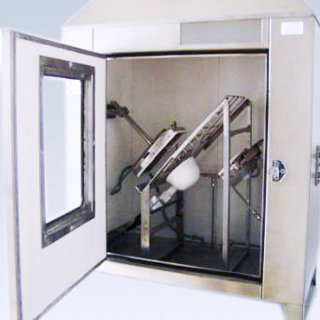

Building Material Radiation Test Machine

Building Material Radiation Test Machine

Model :

T426
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Building material radiation test machine is professional designed to evaluate the M rating of rigid or flexible materials thickness more than 5mm in order to determine the reaction to fire of building materials. The test apparatus is designed according to requirement of NF P 92-501. This apparatus is to determine the flammability of M0-M4 and combustion developing speed of the samples which won’t melt during the test.

Standard

NF P 92-501

Feature

  • Stainless steel chamber with fire resistance internal walls.
  • Standard conical air intaking system equipped with air filtration system to avoid results influencing.
  • Epiradiator radiation heating system is adjusted by power controller to meet different requirements.
  • Needle valve for adjusting flame height.
  • Equipped with thermocouple for air temperature.
  • Equipped with testing and analysis software to provide flammability index, combustion developing index and others.

Specification

Item Detail
Epiradiator 500W
Radiation flux 30kW/m2
Sample support 45°
Chamber  Stainless steel
Testing environment  10-35℃
Power supply 220V 50Hz 10A
Dimension 1600mm×660mm×1500mm
62.99inch×25.98inch×59.06inch
Net weight 80kg
176.37lb

Configuration

No. Product
2042601 Building material radiation test machine
2042602 Calibration accessories
