Flexible Material Flammability Class Test Machine

Flexible Material Flammability Class Test Machine

Model :

F505
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Flexible material flammability class test machine is professional designed to determine the flammability, fusion, inert class according to NF P 92-503 electrical burner test. It is for measurement of fire retardancy level and reaction to fire of flexible materials drapes, curtains, tight fitting decorative fabrics or wall covering. The machine provide solid data for describing the burn behavior of materials which is possible to make an essential contribution to preventative fire safety and reduce the risk of fire in buildings.

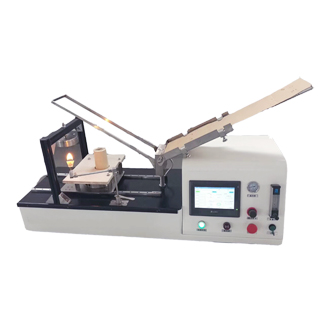

Flexible material flammability class test machine

Standard

NF P 92-503, DIN 4102, EN 13501, NFPA 701

Feature

  • Compact structure internal control system.
  • Touch screen control panel for easier checking testing results.
  • Inserted ball flowmeter for gas control.
  • Equipped heating element and electrical burner.

Specification

Item Detail
Sample frame 30°
Electrical burner 500W
Control mode Internal PLC control system
Power supply 220V 50Hz
Dimension 850mm×450mm×650mm
33.46inch×17.72inch×25.59inch
Net weight 35kg
77.12lb

Configuration

No. Product
0650501 Flexible material flammability class test machine
