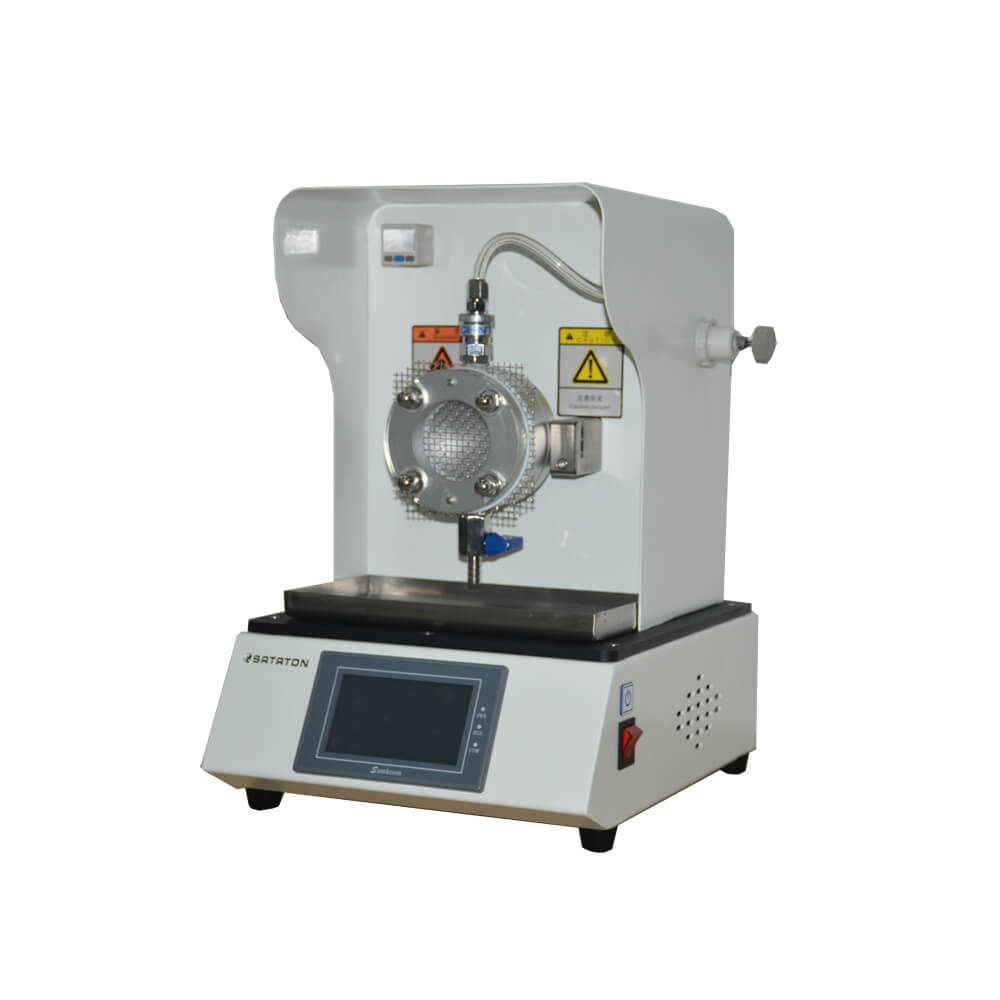

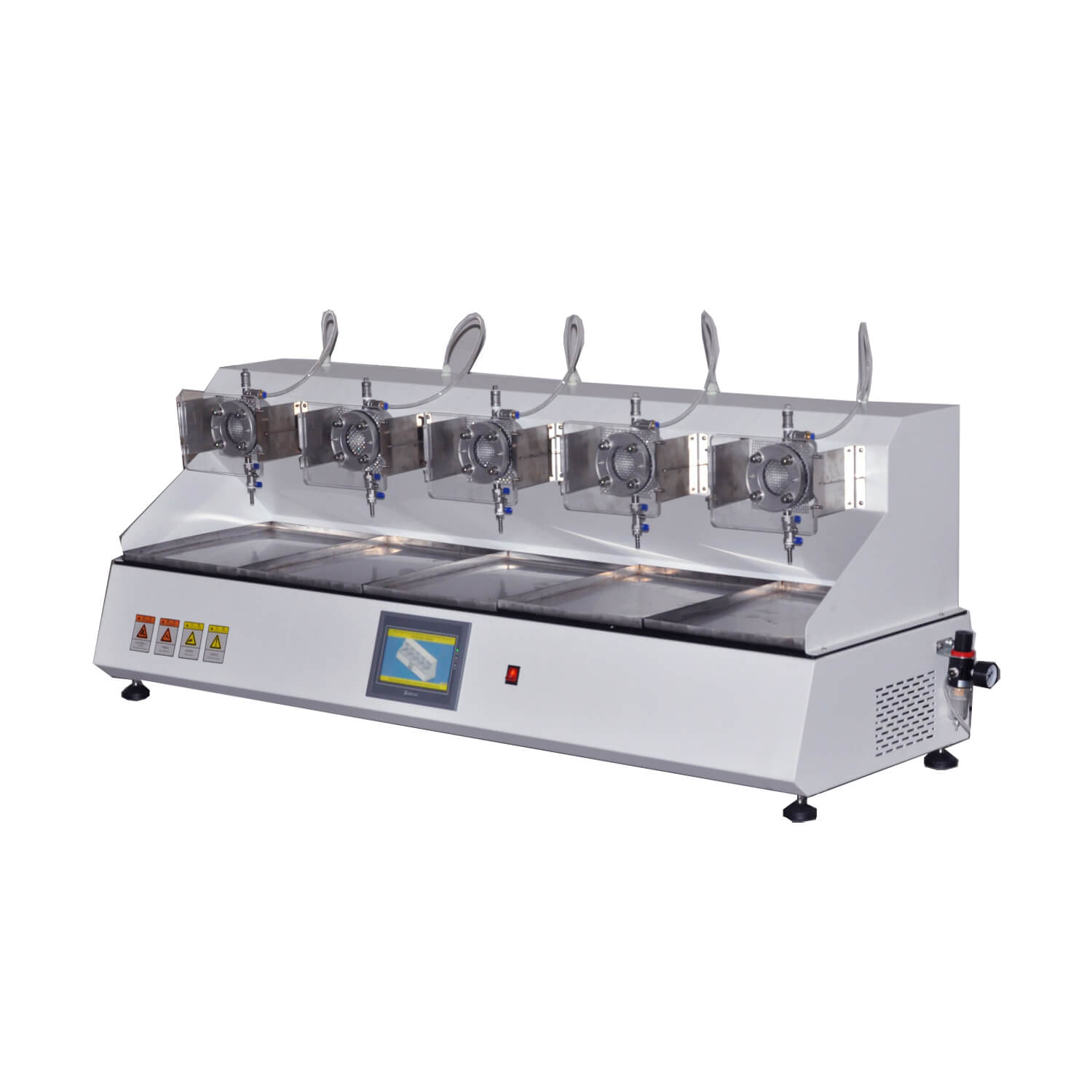

Viral/Synthetic Blood Penetration Tester

Viral/Synthetic Blood Penetration Tester

Model :T436
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Viral/Synthetic Blood Penetration Tester
  • Viral/Synthetic Blood Penetration Tester
  • Viral/Synthetic Blood Penetration Tester

Overview

Viral/Synthetic blood penetration resistance tester is to evaluate the resistance of materials used in protective clothing to penetration by synthetic blood or blood-borne pathogens under conditions of continuous liquid contact. The tester can provide the body fluid simulant (Synthetic blood) with a specified time and pressure for tested specimen to check if there is visual detection of synthetic blood penetration. It is suitable for PPE materials and PPE for workers in healthcare profession who can be exposed to biological liquids capable of transmitting disease.

This machine is also can be used to determine the resistance to penetration by blood-borne pathogens(using Phi-X17 bacteriophage), to evaluate the viral penetration resistance characteristics of personal protective equipment such as gowns, drapes, and gloves.

Standards

ASTM F1670, ASTM F1671, ASTM F903, ISO 16603, ISO 16604, ISO 13994,  ANSI/AAMI PB70, GB 19082, YY/T 0689, YY/T 0700

Feature

  • Aluminic body cell is designed according to standard requirements. PTEE gasket and transparent protective cover.
  • Built-in programm provide full automatical test, needn’t adjust pressure&time manually.
  • Keep pressurizing under different pressures.
  • Clamping force accurate and reliable.
  • The timer displays the test time in real time.

Specification

Item Detail
Test position One or Three or Five
Speimen size 75mm*75mm
Test pressure 1.75kPa, 3.5kPa, 7kPa, 14kPa, 20kPa, 0-40kpa adjustable
Measuring resolution 0.01kPa
Retaining screen 304 stainless steel, aperaure ratio≥50%, bending≤5mm at 14kpa
Force working area 28.26cm2
Timer 0.1s-999.9s, resolution 0.1s
Torque 13.6Nm
Power supply 220 AC 50Hz
Dimension 280mm×350mm×440mm
Net weight 20 kg

Configuration

No. Product
2043601 Viral/Synthetic blood penetration resistance tester
2043602 Torgue
