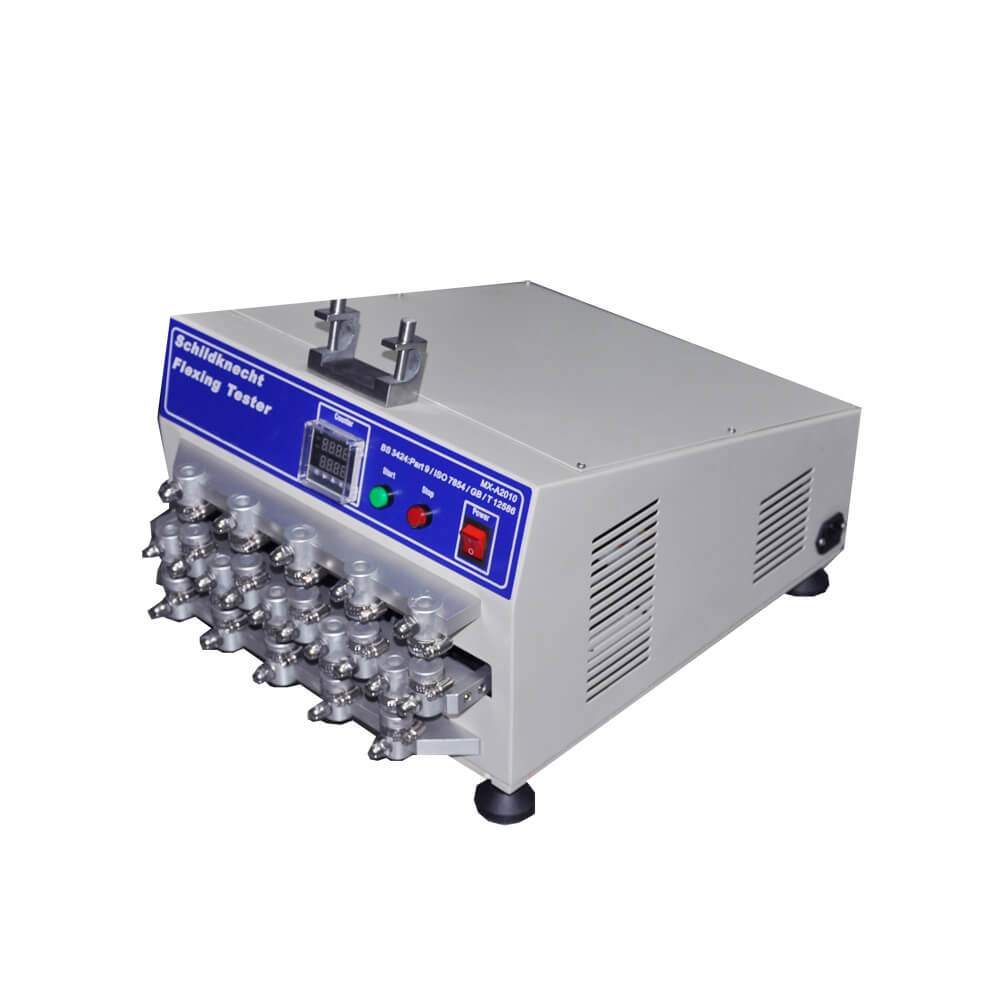

Schildknecht Flexing Tester

Schildknecht Flexing Tester

Model :L165
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Schildknecht Flexing Tester
  • Schildknecht Flexing Tester

Overview

Schildknecht flex cracking resistance tester is designed to determine the dynamic flex fatigue properties of coated fabrics using uni-directional effects. By providing pre-set number of cycles for alternately compressed and relaxed of cylindrical form specimen, the tester can be used to evaluate the fatigue performance by counting numbers when the damage or breakdown to the tested specimen is apparent. It is to determine the flex cracking resistance by compression folding of coated fabric.

schildknecht flexing tester

Standards

BS EN ISO 7854, BS 3424 Part 9, EN 14325, ISO 20471 section 7.4.2, GB 24540 section 6.9, GB/T 12586 method B

Feature

  • Ten test positions.
  • Pre-setting test numbers.
  • Compact structure requires less test space.

Specification

Item Detail
Position 10
Frequency 8.3Hz±0.4Hz(498±24r/min)
Test radius R460mm
Test stroke 11.7mm±0.35mm
Power supply 220V 50Hz/110V 50Hz
Dimension 400mm×600mm×350mm
15.75inch×23.62inch×13.78inch
Net weight 30kg
66.14lb

Configuration

No. Product
1216501 Schildknecht flex cracking resistance tester
