Gelbo Flex Tester with Particle Counter

Gelbo Flex Tester with Particle Counter

Model :

T434
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Gelbo flex tester with particle counter is professional designed for measuring the lint and other particles generation of nonwovens and other textile materials in the dry state by Gelbo flex testing methods. The Gelbo flex tester provides twisting and compression actions for specimen, the fiber fragments and lints released during flexing in the air stream will be counted and classified in the particle counter.

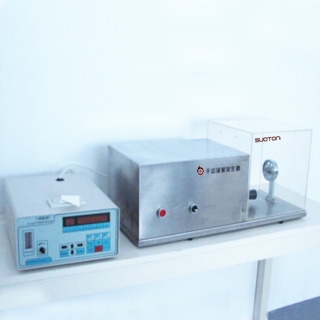

Gelbo flex tester with particle counter

Standards

ISO 9073  EN 13795  YY/T 0506  Inda IST 160.1

Feature

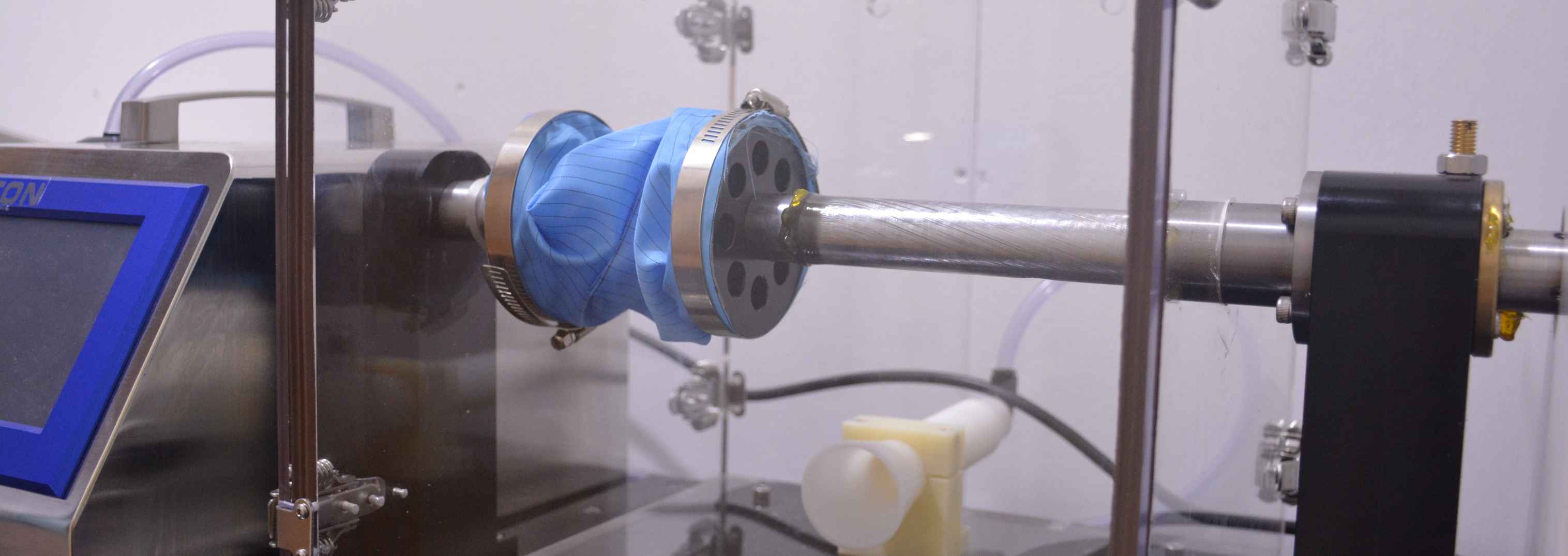

  • Gelbo flex system with antistatic Perspex box.
  • Stable intake probe for air collection.
  • Multiple particle counters can be chosen for different testing and classification requirements.

Specification

Item Detail
Diameter of sample holder Φ82.8mm
Frequency 60 cycles/min
Rotating angle 180°
Starting position distance (188±2)mm
Stroke  (120±2)mm
Particle size 0.3,0.5,0.7,1.0,2.0,5.0,7.0,10.0,25.0μm
Air flow  28.3L/min
Test mode Manual or Automatic
Power supply 220V 50-60 Hz
Dimensions 340mm×140mm×415mm
13.39inch×5.51inch×16.34inch
Net weight 10 kg
22.05lb

Configuration

No. Product
2043401 Gelbo Flex Tester
2043402 Particle Counter
2043403 Sample cutter
2043404 Test kit (Glue and gloves)
