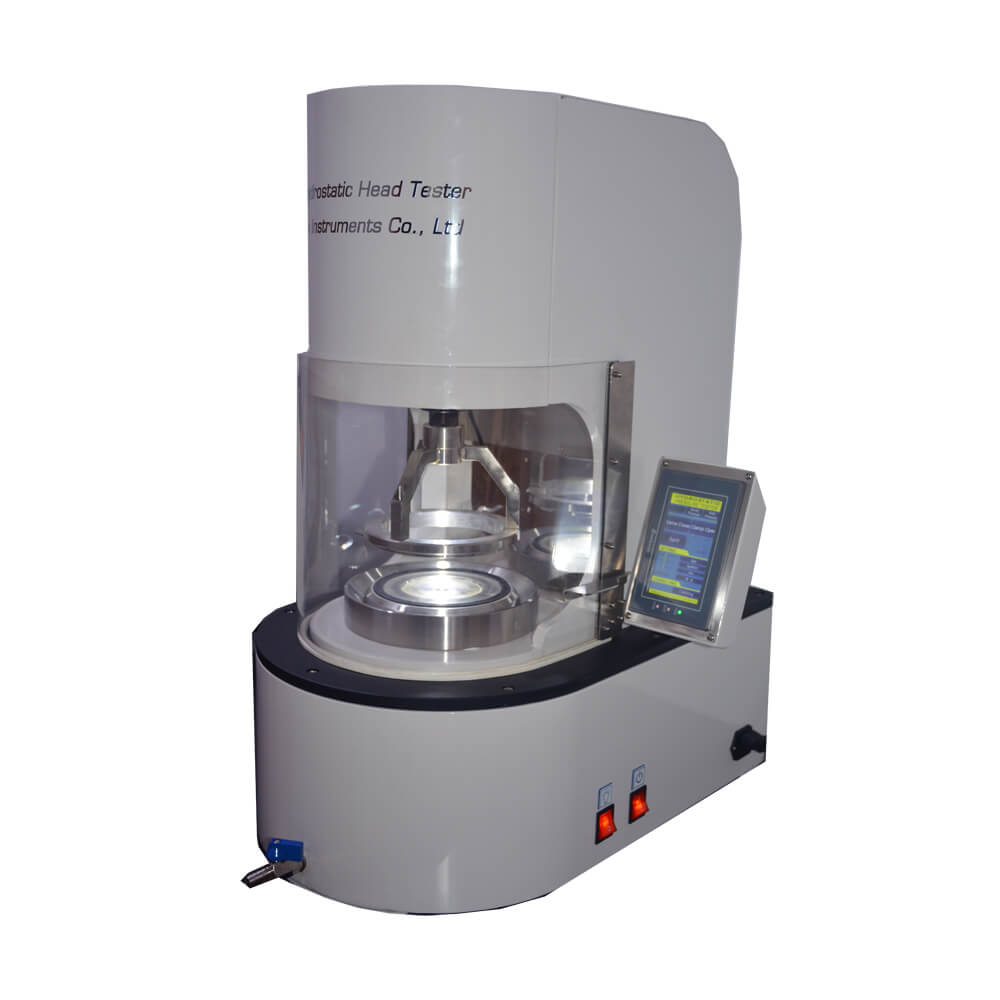

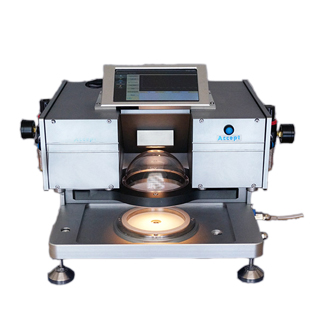

Hydrostatic Head Tester

Hydrostatic Head Tester

Model :T375
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Hydrostatic Head Tester
  • Hydrostatic Head Tester

Overview

Hydrostatic head pressure tester is designed to determine the resistance to water penetration of materials by hydrostatic pressure method. By measuring the opposition to the passage of water through the tested specimen, the tester is to provide standard testing conditions for operator to note the test terminal point. The tester is primarily intended for ducks, tarpaulins, tentings, waterproof materials and other materials which are used for impermeable application, such as chemical protective clothing or medical protective clothing.
fabric water proofness test

Standards

GB/T 4744, AATCC 127, ISO 811, EN 20811, BS 2823, BS 3424, BS 3321, ISO9073, EN 343, ISO 1420A,  DIN 53886, IST 080.4, IST 080.6, JIS L1092, AFNOR G07-057, ERT-120-1, ERT-160-0, EDANA 120.2,  ISO 16603, ASTM F1670, YYT 0700, ASTM F903

Feature

  • Pneumatic clamps with adjustable air pressure can provide solid clamping force.
  • Color touch screen control panel is easy to use and maintain.
  • Selectable testing modes can satisfy different testing requirements.
  • Built-in alarm function.
  • LED observing lamp is convenient for checking the terminal end of testing.

Specification

Item Detail
Pressure range 0-4mH2O (0-400kPa)
Pressure resolution 1mm H2O
Testing time 1-99.99min (±0.1min)
Max testing time One week
Pressure rate 1-100kPa/min
Testing head 100cm2
Power supply 220V 50Hz
Dimension 500mm×450mm×750mm
Net weight 105kg

Configuration

No. Product
2037501 Hydrostatic head pressure tester
2037502 Selectable testing head kit
2037503 External testing head kit
2037504 Air compressor
