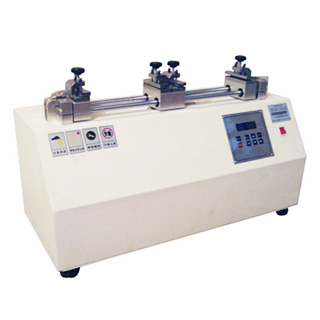

Seam Fatigue Tester

Seam Fatigue Tester

Model :L209
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Seam Fatigue Tester
  • Seam Fatigue Tester

Overview

Seam fatigue tester is professional designed to determine the seam fatigue performance for leather or vinyl leather used mainly for automobile interior trim materials. By providing certain loading weight on specimen, the tester works under setting rotary speed and cycles. The damage and size of the expanded needle hole will be measured as results.
Seam fatigue tester, JASO M403, GMW 3405

Standards

TOYOTA TSL 5100G 4.22, GMW 3405, FORD MOTOR Co.BN 106-02, Nissan M-0154, TOYOTA TSL 5101G 3.7,  JASO M403, GB/T 4043, GB/T 32011

Feature

  • Simple panel with digital counter is easy to operate.
  • Stable motor provides solid testing procedure.
  • Safety shield ensures safe testing process.

Specification

Item Detail
Rotary speed 30 cycles/min
Loading weight 3kg
Digital counter 1-999999
Clamping distance 120mm.124mm, 140mm
Clamp width 50mm
Power supply 220V 50-60 Hz
Dimensions 810mm×350mm×560mm
31.89inch×13.78inch×22.05inch
Net weight 60 kg
132.28lb

Configuration

No. Product
1209301 Seam fatigue tester
