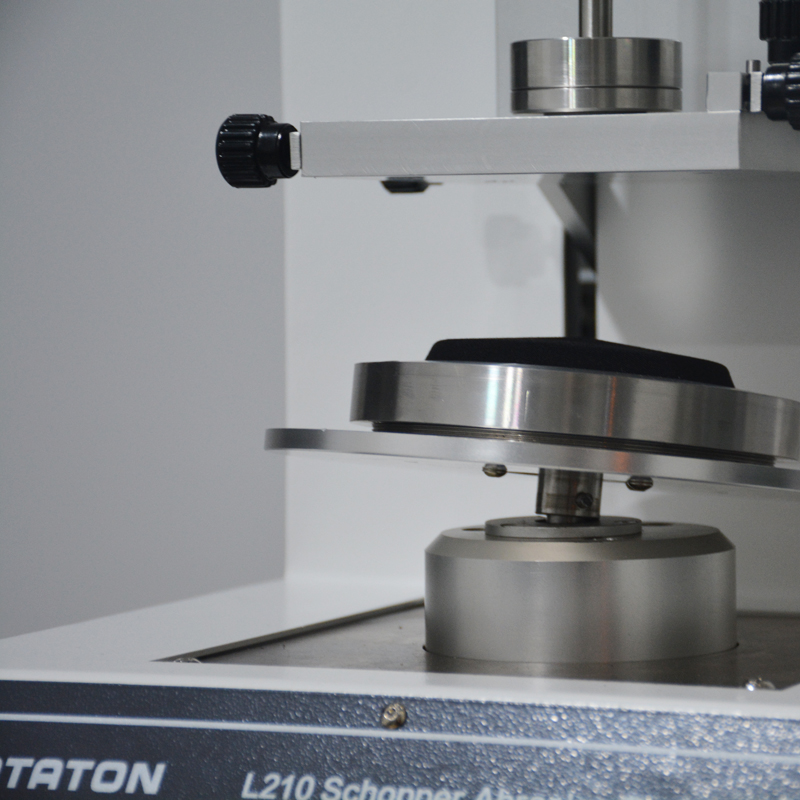

Schopper Abrasion Tester

Schopper Abrasion Tester

Model :L210
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Schopper Abrasion Tester
  • Schopper Abrasion Tester
  • Schopper Abrasion Tester
  • Schopper Abrasion Tester

Overview

Schopper abrasion tester which is also called Schopper abrasion resistance tester or Schopper rotary abrasion tester is used to evaluate the abrasion resistance of automotive trim materials under tension on a continuous contact movement for the tangent. It is widely recommended by many auto enterprise for quality control of carpet and automobile interior materials.
Schopper abrasion tester, Schopper abrasion resistance tester, Schopper rotary abrasion tester

Standards

DIN 53863 part 2, PV 3908, GME Standard 60345, GMW 3283, QC/T 216

Feature

  • Color touch screen with options of English or Chinese.
  • PLC control mode provides more stable running performance and faster data processing.
  • Special inch function makes operation more convenient.
  • Programmable and preset system meet more standards and using requirements.

Specification

Item Detail
Rotational speed 75 r/min
Cone angle 166°
Sample area 100cm², round sample with diameter 11.28mm
Abrasion area 50cm²
Specimen curvature 5mm
Loading pressure Weight/m² of the sample
up to 100    – 1.0N
100 to 150  – 2.0N
150 to 300  – 5.0N
above 300  – 10.0N
Power supply 220V 50Hz
Dimension 340mm×600mm×630mm
Net weight 48kg

Configuration

No. Product
1221001 Schopper abrasion tester
1221002 Loading weight kit
1221003 320# Silicon carbide
1221004 AP400 Silicon carbide
1221005 Soft brush
