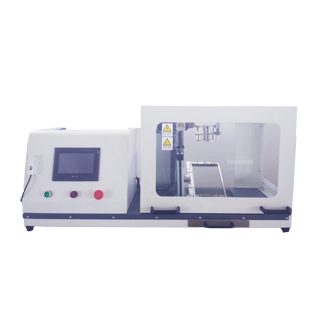

Molten Metal Splash Test Machine

Molten Metal Splash Test Machine

Model :

Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details


Molten metal splash test machine is professional designed to assess the heat penetration resistance of materials to large splash of molten metal according to ISO 9185. The test apparatus is aim to determine the protection effects of PPE (personal protective equipment) agianst to splashes of molten aluminium, molten cryolite, molten copper, molten iron and molten mild steel. By measuring the molten metal splash index, the amount of molten metal casued damage to the specific PVC film, the tester provide solid data for manufacturers or researchers to ensure the protective performance of industrial workwear or PPE for potential injury to huam skin.
Molten metal splash test machine for ISO 9185


EN 373, ISO 9185


  • External control system provide safe operation conditions.

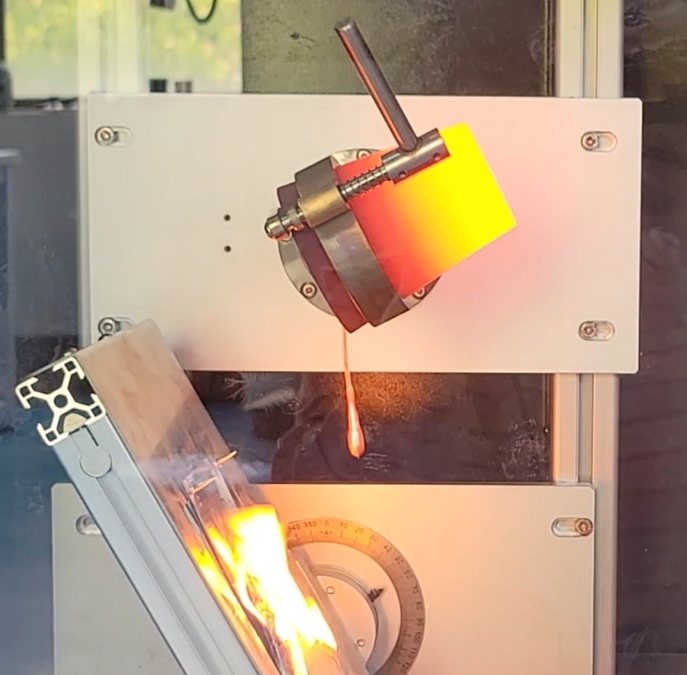

  • Motor driven crucible with automatic pouring device for molten metal.
  • High sensitive thermocouple to ensure the test end.


Item Detail
Crucible 97mm×Ф80mm
Thermocouple for molten metal Up to 1650℃
Spample holder 160mm×248mm
Pouring rate Pre-setted
Pouring height Up to 300mm
Power supply 220V 50-60 Hz
Dimensions 450mm×400mm×450mm
Net weight 25 kg


No. Product
2042501 Molten metal splash test machine with control system
2042502 Safety chamber
