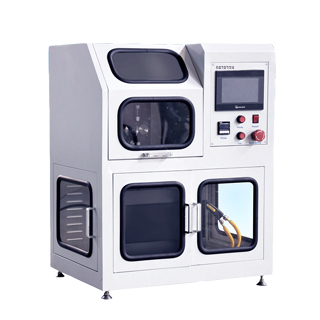

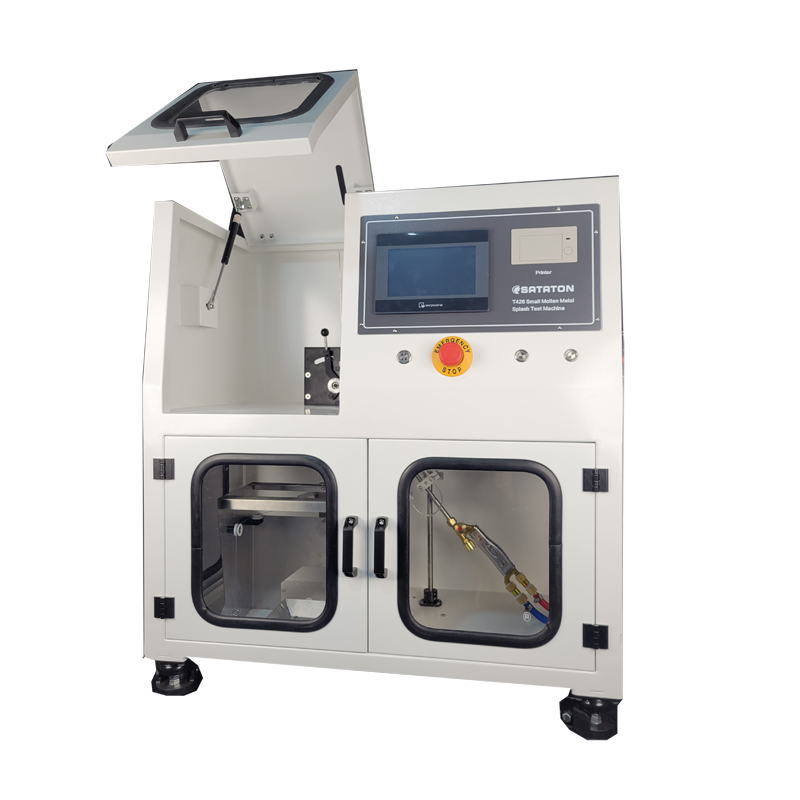

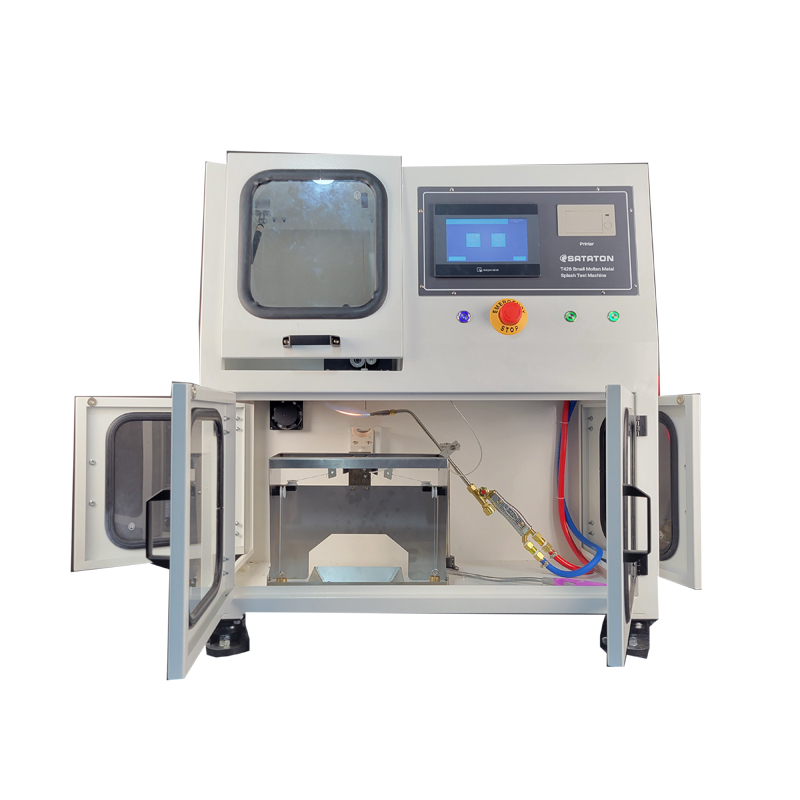

Small Drops Molten Metal Splash Tester

Small Drops Molten Metal Splash Tester

Model :T426
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Small Drops Molten Metal Splash Tester
  • Small Drops Molten Metal Splash Tester
  • Small Drops Molten Metal Splash Tester

Overview

Small drops molten metal  resistance tester also called molten metal splash tester is professional designed to evaluate the behavior of materials used for protective clothing of EN ISO 11611, EN ISO 20349 when such materials are struck by small liquid metal splashes which is designed according to EN 348 and ISO 9150. It is used to determine the protective performance of PPE (personal protective equipment) for wearer against small splashes of molten metal is often submitted to high thermal loads. The test machine can provide solid data for manufacturers or researchers to ensure the protective clothing’s protective function is resistance to heat transfer and useful to avoid the hazards that may cause human injury under conditions of use.

Molten metal small drops resistance tester

Standard

EN 407,  EN 348, ISO 9150, EN ISO 11611, EN ISO 20349, GB 38543, GB/T 38306

Feature

  • Touch screen control panel.
  • Pre-setting metal welding rod feeding speed and gas flow control.
  • Automatic temperature data recording.
  • Equipped with sheild cover to provide safe test condition.

Specification

Item Detail
Gas Oxygen and Acetylene
Gas pressure Adjustable
Welding rod feed rate Adjustable
Diameter of welding burner (1.2±0.1)mm
Temperature measurement Temperature sensor
Loading weight 175g±0.5g
Power supply 220V 50Hz
Dimension 700mm×500mm×850mm
27.56inch×19.69inch×33.46inch
Net weight 45 kg
99.2lb

Configuration

No. Product
2042601 Small drops molten metal splash resistance tester
