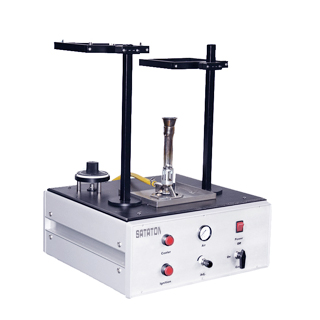

HTI Heat Transmission Tester

HTI Heat Transmission Tester

Model :

T423
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

HTI heat transmission tester is professional designed to measure the heat transmission through materials or material assemblies which are subjected to an incident heat flux from flame of a gas burner. Heat transfer index (HTI) will be calculated from the mean time to achieve a temperature rise of 24℃ by a copper disc calorimeter. Heat transfer index is for ranking the ability of clothing assemblies to delay the transfer of heat from a flame. It is widely used for textiles which are for personal protective equipment.
HTI heat transmission tester, EN 367

Standard

EN 367  ISO 9151

Feature

  • Automatically recording times of temperature rise of 24℃ and 12℃.
  • Automatically calculating the heat transfer index (HTI) by analysis software.
  • Built-in air cooling assembly for copper disc calorimeter.
  • Sample holding frame controlled via pneumatic transmission.

Specification

Item Detail
Heat flux 80KW/m2
Calorimeter Φ40mm copper disc with copper constantan thermocouple
Specimen holder 150mm×150mm
Expose hole 50mm×50mm
Specimen holder moving control Pneumatic
Gas burner Meker burner
Power supply 220V 50-60 Hz
Dimensions 450mm×400mm×450mm
17.72inch×15.75inch×17.72inch
Net weight 25 kg
55.12lb

Configuration

No. Product
2042301 HTI heat transmission tester
2042302  Computer with analysis software
2042303 Meker burner
2032304 Calorimeter
