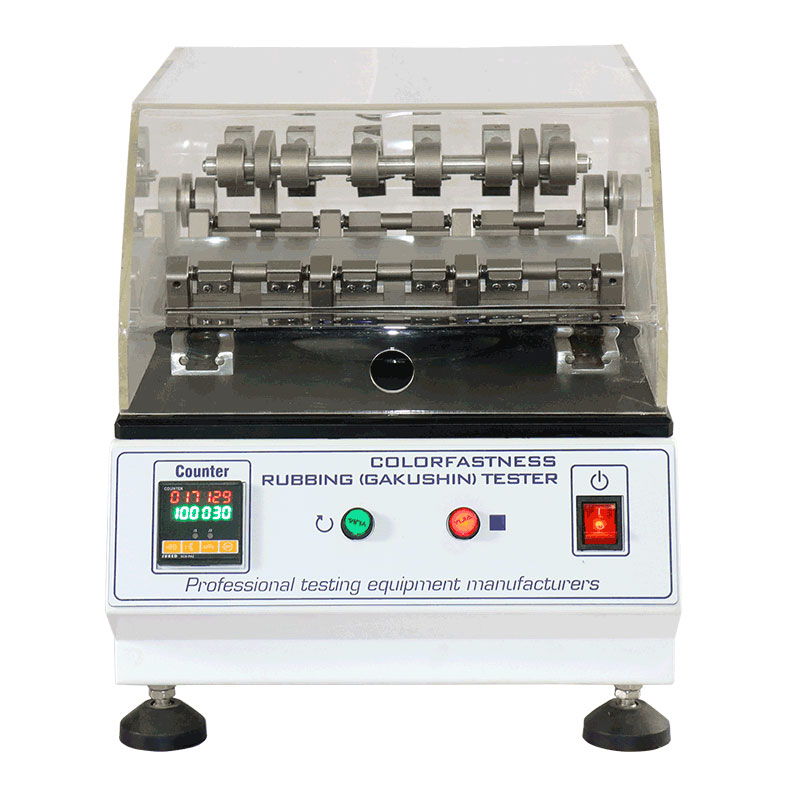

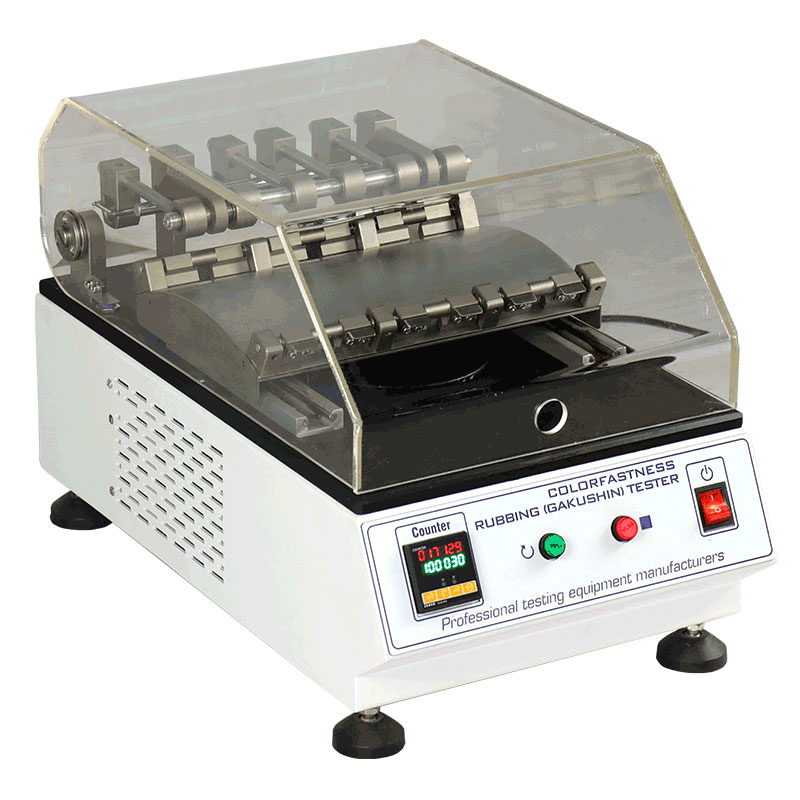

Gakusin Rubbing Fastness Tester

Gakusin Rubbing Fastness Tester

Model :

T305
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Gakusin rubbing fastness tester which is also called as JIS rubbing fastness tester is professional designed to determine the resistance of the color of the dyed textiles to rubbing. The tester can provide certain loads and rubbing effects on the samples for helping color fastness assessed by comparing the staining of the undyed cotton cloth with the grey scale for assessing staining. It is widely applicable for textiles, synthetic leather, board, paintings or print ink on color fastness performance or abrasion resistance property.
Gakusin Rubbing Fastness Tester2

Standard

JIS L0849

Feature

  • Six individual testing positions.
  • LCD digital presetting counter with automatic stop.
  • High efficiency motor with low noise.

Specification

Item Detail
Rubbing finger 20mm×20mm
Finger surface Curved surface with r45mm
Rubbing finger mass 200g
Specimen stage Curved surface with r200mm
Rubbing distance 100mm
Reciprocating rate 30 cycles/min
Power supply  220V 50-60 Hz
Dimensions 490mm×550mm×365mm
19.29inch×21.65inch×14.37inch
Net weight  45 kg
99.21lb

Configuration

No. Product
2030501  Gakusin rubbing fastness tester
2030502 Loading weight kit
