Chemical Protective Clothing Pressure Leakage Tester

Chemical Protective Clothing Pressure Leakage Tester

Model :T457
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Chemical Protective Clothing Pressure Leakage Tester

Overview

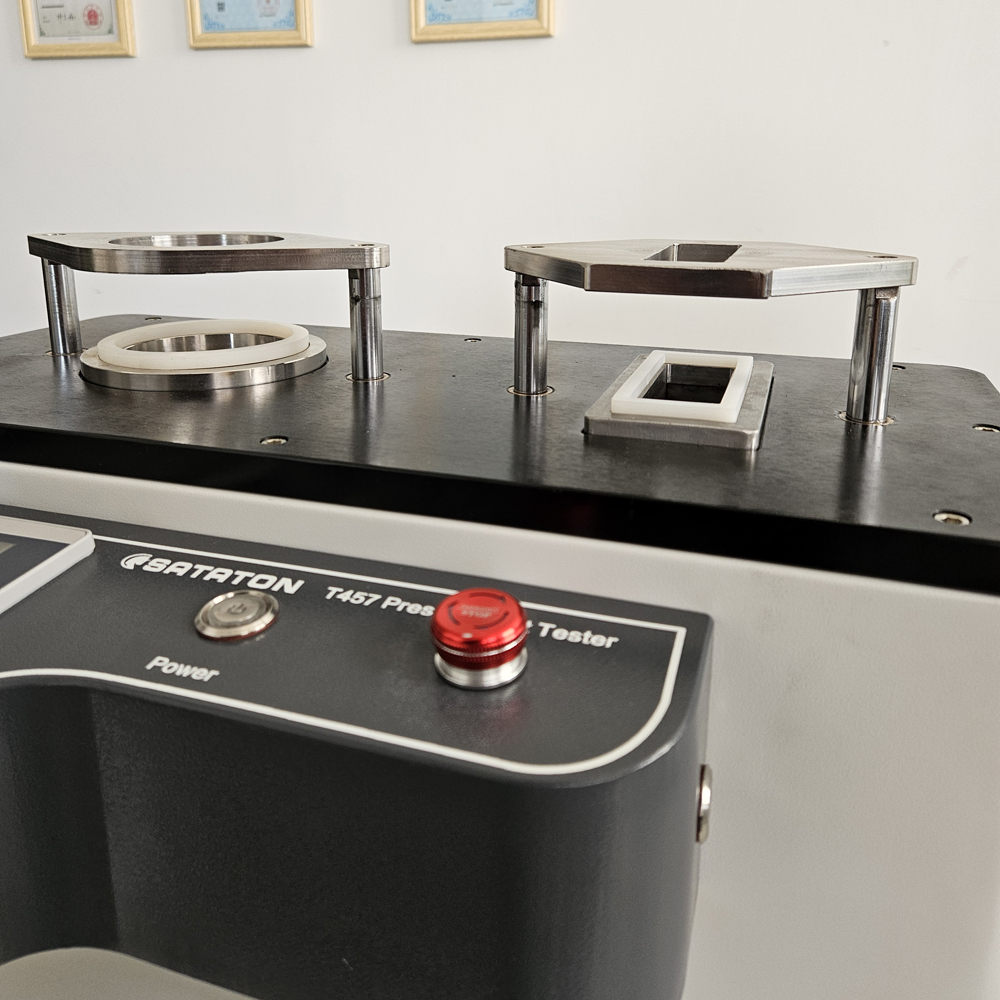

Chemical protective clothing pressure leakage tester also called pressure pot tester is designed to measure material specimen leakage test for chemical protective clothing materials to determine the property change after abraded or flexed. It is effective to measure the invisible performance changes of samples that have been durability tested and it is the supplementary means for usage performance estimation.

Standards

ISO 16602 Annex G, EN 14325 clause 4.4.4.2

Feature

  • Touch screen control panel.
  • Manual sample holder is easy to operate.
  • Warning indicator of the system.

Specification

Item Detail
Inner dimension of rectangular pot 30mm*85mm*90mm
Inner dimension of ound pot Φ82mm*90mm
Pressure measurement Different pressure sensor, 0-1200pa
Pressure sensor accuracy ±0.5% FS
Test time Presetting
Power supply 220V 50Hz
Dimension 300mm×300mm×450mm
11.81inch×11.81inch×17.72inch
Net weight 25kg
55.12lb

Configuration

No. Product
2045701 Chemical protective clothing pressure leakage tester
