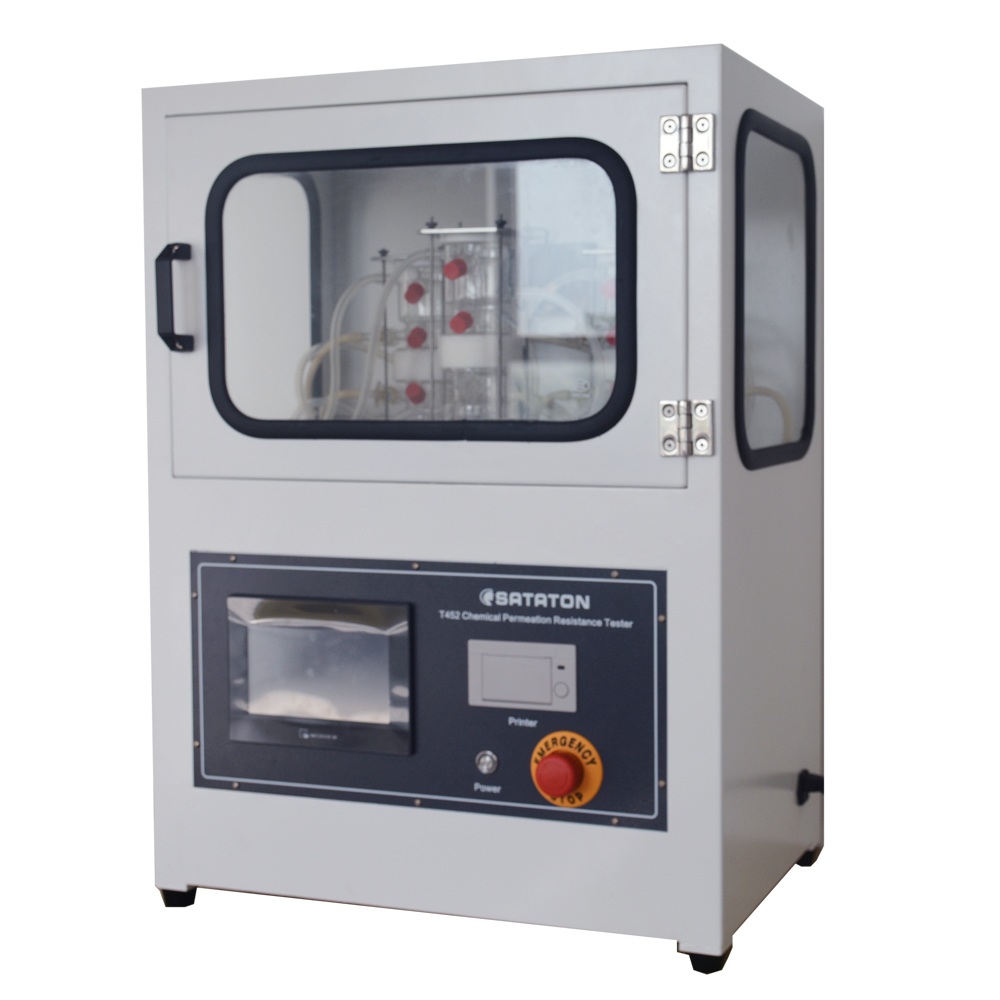

Chemical Permeation Resistance Tester

Chemical Permeation Resistance Tester

Model :T452
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Chemical Permeation Resistance Tester
  • Chemical Permeation Resistance Tester

Overview

Chemical permeation resistance tester is to determine the chemical permeation of liquid test chemicals under continuous contact relative to safety clothing or safety glove material samples according to ISO 6529. The tester with temperature control jacket is suitable for 30 % sodium hydroxide solution, 96 % and 18 % sulphuric acid, inorganic and organic acids. The tester equipped with temperature controller for stable temperature controlled.

Standard

ISO 6529, EN 374-3, GB 24540 clause 6.1, EN 14325 clause 4.11, EN 14126 clause 4.1.3,

Feature

  • Three test cells for conductive, open loop and close loop.
  • Touch screen control panel with real-time curve for permeation.
  • High borosilicate glass cell or PTFE test cell.

Specification

Item Detail
Test cell 3 units
Sample holder 3 units
PH sensor 0-14 with temperature compensation
Constant temperature cycle Yes
Optional detector FID, PID, UV
Sampling flow rate Up to 200ml/min
Sampling tube Norprene
 Exhaust fan  Yes
 Power supply  220V 50Hz
 Dimension  650mm×450mm×1000mm
25.596inch×17.72inch×39.37inch
 Net weight  35kg
77.16lb

Configuration

No. Product
2045201  Chemical permeation resistance tester
2045202  FID/PID
2045203 High borosilicate glass cell kit
