ICI Mace Snagging Tester

ICI Mace Snagging Tester

Model :

T323
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

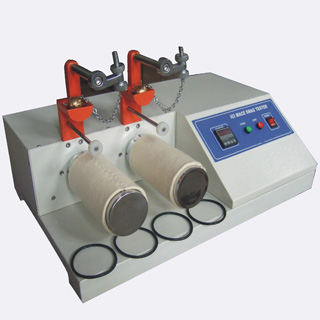

ICI mace snagging tester is professional designed for determining the snagging resistance of fabric by mace method. By providing certain rotary speed and testing numbers, the tester can finish the test and provide tested specimen for operator to observe the vary appreciably in number and appearance to determine the snag resistance. It is also can be used by researchers to examine the effect of new fibers, yarns, fabric constructions, and finishes on the snagging resistance of fabrics.
ICI mace snagging tester

Standards

ASTM D3939  GB/T 11047  JIS L1058

Feature

  • Two positions or four positions.
  • Digital timer for preset and auto stop.
  • Stable motor and structure provide better testing process.

Specification

Item Detail
Speed 60±2rpm
Holder diameter 82mm
Holder length 210mm
Mace weight 160g
Pin number  11
Pin top point R0.13mm
Pin length  10mm
Wool felt 3mm thickness
Wool felt length 165mm
Power supply  220V 50Hz
Dimension 660mm×410mm×600mm
25.98inch×16.14inch×23.62inch
Net weight   45kg
99.21lb

Configuration

No. Product
2032301  ICI mace snagging tester (Two position)
2032302  ICI mace snagging tester (Four position)
2032303 Accessories kit
