TDM Cut Test Machine

TDM Cut Test Machine

Model :

T460
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

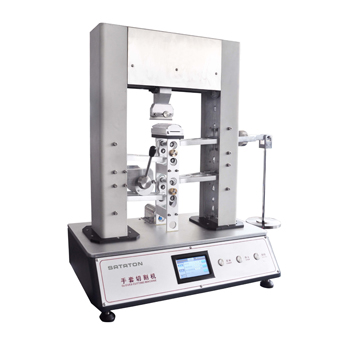

TDM (Tododynamometer) cut test machine which is also called as TDM 100 cut test machine is to determine the cut resistance of protective gloves by TDM method according to ISO 13997. The machine is designed to determine resistance to cutting by sharp edges, such as knives, sheet metal parts, swarf, glass, bladed tools and castings for cutting resistance performance of protective clothing materials.
TDM Cut Test Machine, Tododynamometer

Standards

ISO 13997, ASTM F1790

Feature

  • LCD control and setting panel.
  • Low noise and stable performance by high quality motor.
  • Single-chip microcomputer control system provides precise control.
  • Low friction by high precision bearing.

Specification

Item Detail
Loading force Up to 220N
Blade max movement  200mm
Cut speed Up to 150mm/min
Power supply 220V  50Hz
Dimension 700mm×400mm×850mm
Net weight 55kg

Configuration

No. Product
2046001 Cut resistance tester
2046002 Weights kit
