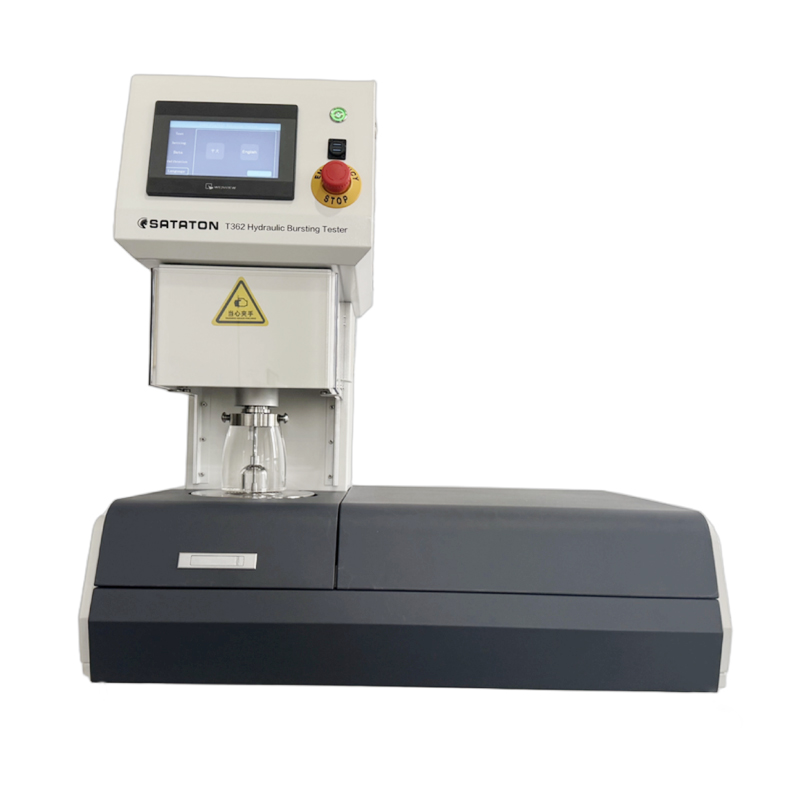

Fabric Hydraulic Bursting Strength Tester

Fabric Hydraulic Bursting Strength Tester

Model :T362
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Fabric Hydraulic Bursting Strength Tester
  • Fabric Hydraulic Bursting Strength Tester
  • Fabric Hydraulic Bursting Strength Tester
  • Fabric Hydraulic Bursting Strength Tester

Overview

Fabric hydraulic bursting strength tester is professional designed for the determination of bursting strength and bursting distension of textile fabrics, paper and board, non-woven, plastic and composite film, etc. It uses hydraulic method which uses constant pumping device provides hydraulic pressure to test the materials.
Digital bursting strength tester

Standards

GB/T 7742.1  ASTM D3786  BS EN ISO 13938-1  BS 3424-6-B  ISO 3303.2  ISO 2758  ISO 3689  JIS L1018  IWS TM170

Feature

  • Touch screen can provide English and Chinese control language.
  • Pneumatic clamps can avoid specimen slip.
  • Microprocessor controller provides automatic testing process and analyzing function.
  • Data export and storage.
  • High sealed oil cylinder can avoid the mistakes from oil leakage.
  • Equipped with pressure calibration port.

Specification

Item Detail
Pressure Up to 2.000MPa (0.01kpa)
Distension Up to 70mm (0.01mm)
Pressure rate 10ml/min~500ml/min
Test area Φ79.8mm(50cm²) Φ30.5mm(7.3cm²)
Optional test area Φ112.8mm(100cm²)  Φ35.7±0.2mm(10cm²)

Φ31.5mm(7.5cm²)   Φ31mm   Φ30±0.2mm

Power supply 220V 50Hz
Dimension 850mm×470mm×870mm
33.46inch×18.5inch×34.25inch
Net weight 135kg
297.62lb

Configuration

No. Product
2036201 Digital bursting strength tester
2036202 Air compressor
2036203 Testing kit (Diaphragm and glycerin)
2036204 Optional testing cups
2036205 Calibration aluminum foil
