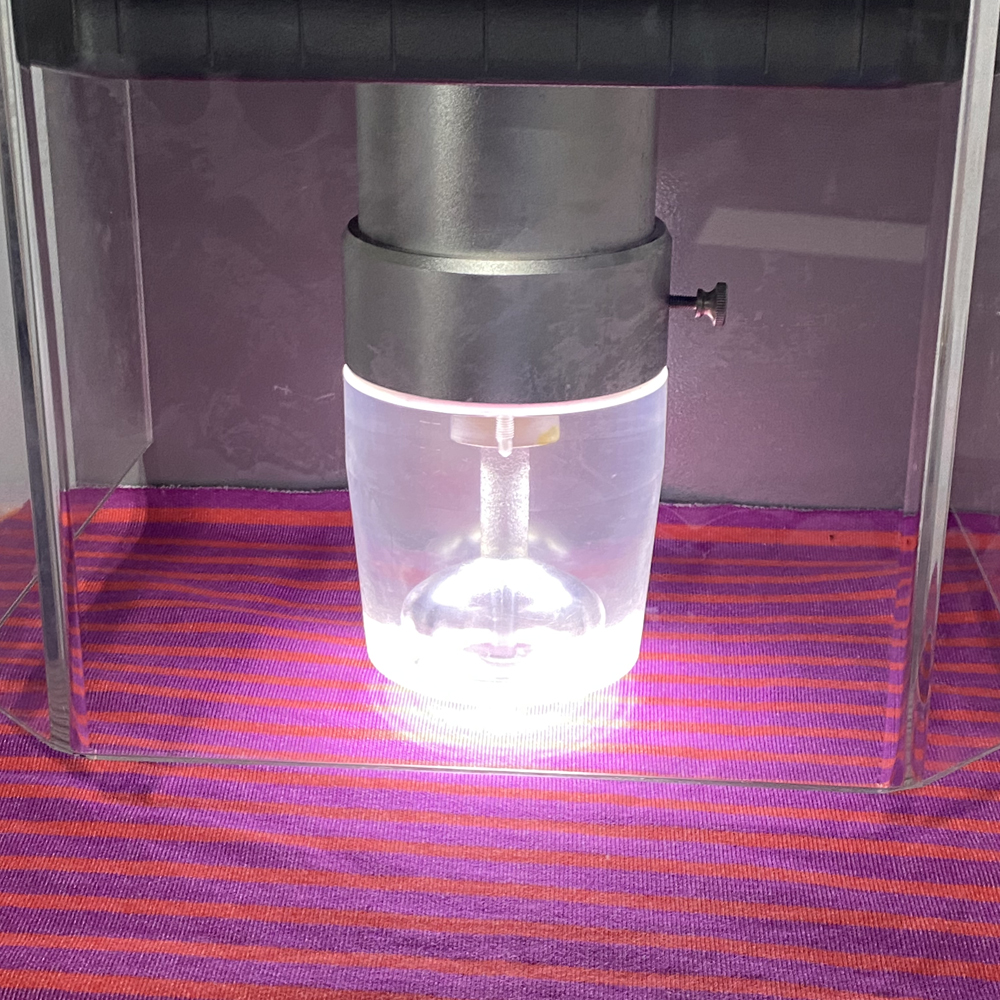

Pneumatic Bursting Strength Tester

Pneumatic Bursting Strength Tester

Model :

T363
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Pneumatic bursting strength tester is professional designed for the determination of bursting strength and bursting distension of textile fabrics, knitted fabrics, woven fabrics, nonwoven fabrics, laminated fabrics, etc. It uses pneumatic pressure method which uses compressor to provide compressed air pressure to test the materials.

Standard

ISO 13938.2  ASTM D3786  GB/T 7742.2   WSP 030.2.R3   Woolmark TM 29   Edana 80.4-02

Feature

  • Chinese and English interface with touch screen controlling.
  • PMMA viewing safety shield with illuminating system.
  • Automatic testing cycle with burst detection and auto-return.

Specification

Item Detail
Pressure Up to 2.000MPa
Distension Up to 70mm (0.02mm)
Timing range 15~30s
Air flow 100-500mL/min
Measuring area 7.3cm² (Ø 30.5mm),50cm² (Ø 79.8mm)
Measuring area 7.1cm²(Ø30.1mm),7.55cm²(Ø31mm),7.8cm²(Ø31.5mm),10cm²(Ø35.7mm),100cm²(Ø113mm)
Power supply 220 AC  50Hz
Dimension 550mm×450mm×700mm
21.65inch×17.72inch×27.60inch
Net weight  68kg
149.91lb

Configuration

No. Product
2036301 Pneumatic bursting strength tester
2036302 Standard test area clamp kit
2036303 Optional test area clamp kit
2036304 Compressor (800W)
