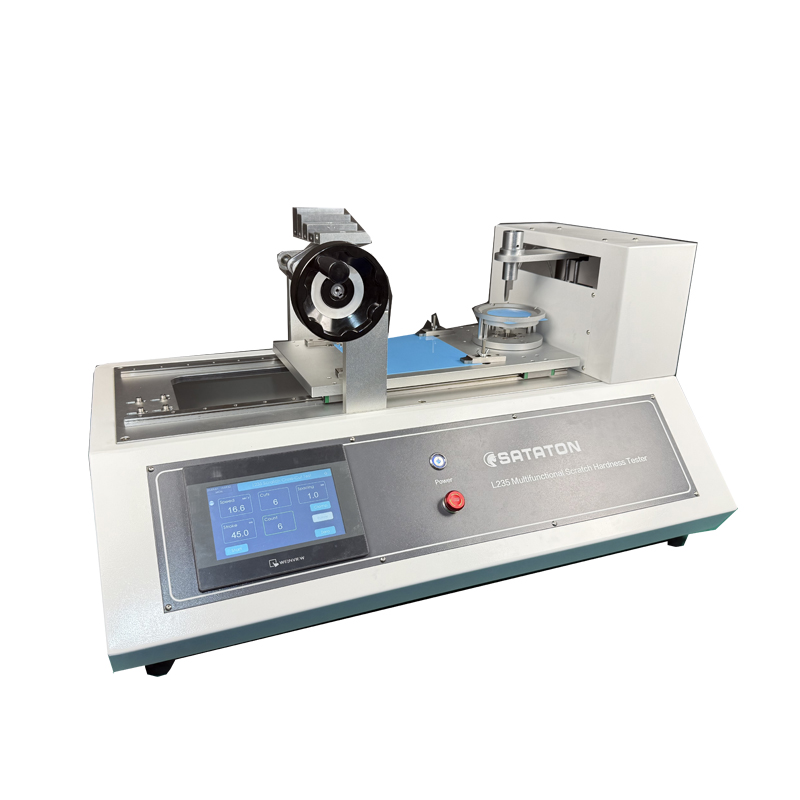

Multifunctional Scratch Hardness Tester

Multifunctional Scratch Hardness Tester

Model :L326
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Multifunctional Scratch Hardness Tester
  • Multifunctional Scratch Hardness Tester
  • Multifunctional Scratch Hardness Tester

Overview

Multifunctional scratch hardness tester is an integrated testing instrument designed for cross hatch cut method and five-finger (five arm) method to measure scratch or mar resistance, hardness, susceptibility of a material surface to different physical damage like scratching, marring, scraping, etc. The tester are made of two parts, one is for determination of resistance to scratches and cuts according to cross-cut test for paints and varinishes. The other is for

Standard

ASTM D 3359, BS EN ISO 2409, PV 3952, GME 60280, GMW 14698, GMN 3943, BMW GS97034-2, BMW gs97034-9, VDA 621-411, SNV 37111, FLTM BO 162-01, FLTM BN 108-13, Chrysler LP-463DD-18-01

Feature

  • Integrated testing system for cross hatch test and five arm finger mar test.
  • Color touch screen control panel.
  • Adjustable testing speed and different loading weight, arm finger types and cutting types.

Specification

Item Detail
Moving distance  10-200mm
Running speed 10-200mm/s
Five arm finger sample holder Moveable platform
Cross-cut test sample holder Stainless steel holder
Cutting pattern Parallel cuts or cross cuts
Power supply 220V 50Hz
Dimension 850mm×500mm×900mm
33.46inch×19.69inch×35.43
Net weight 50kg
110.23lb

Configuration

No. Product
1232601 Multifunctional scratch hardness tester
1232602 Cross-cut scratching kit
1232603 Five arm finger marring kit
1232604 Plastic scratching finger kit
