Blade Cut Resistance Tester
Model :T481
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
Overview

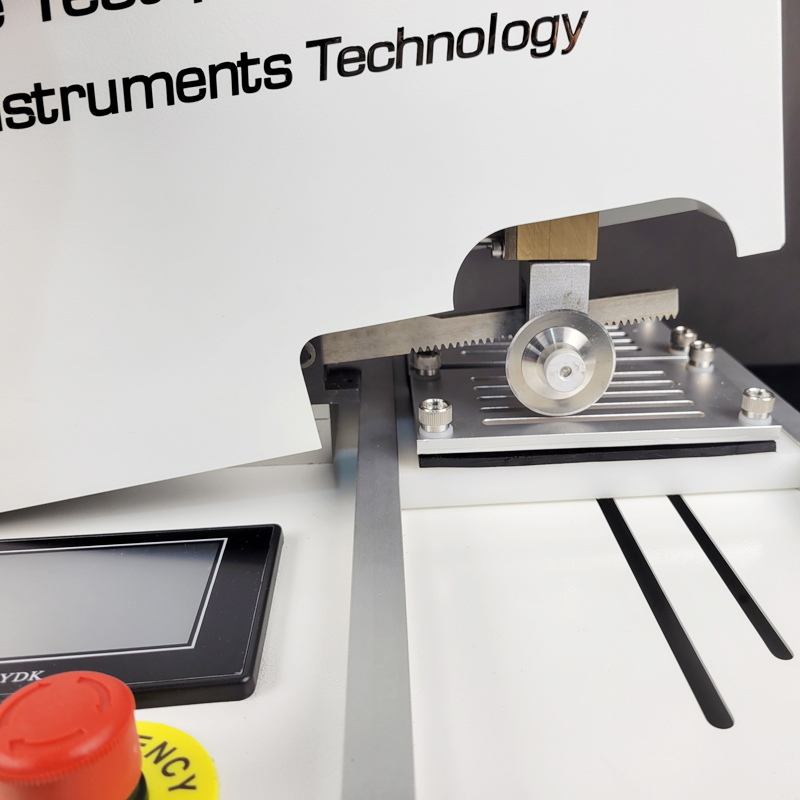

Circular blade Cut resistance tester also called coupe test machine is to determine the cut resistance of protective equipment such as gloves, footwear and other products. By providing certain loading pressure and reciprocating movement, cut resistance tester can simulate the real using conditions and predict the operational performance of the specimen.
Standards
EN 388-2016 section 6.2, ISO 20344-2021 section 5.23, GB/T 20991-2007 section 6.14, IEC 60903-2014 section 5.10. 2, AS/NZS 2210.2 section 6.14, AQ 6102 section 4.3.2
Feature
- LCD control and setting panel.
- Safety shield provides safer operating condition.
- Preset testing cycles with automatic stop make tests easier.
- High quality motor provides lower running sound and longer service life.
Specification
| Item | Detail |
| Load | 5±0.005N |
| Reciprocating stroke | 50mm |
| Cut speed | Up to 10cm/s |
| Counter range | 1-999999 |
| Power supply | 220V 50Hz |
| Dimension | 600mm×250mm×450mm 23.62inch×9.84inch×17.72inch |
| Net weight | 57kg 125.66lb |
Configuration
| No. | Product |
| 2048101 | Cut resistance tester |
