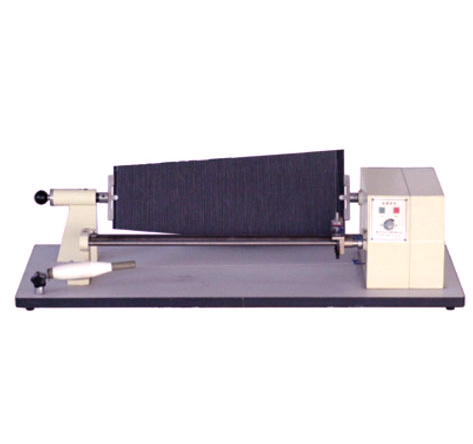

Yarn Inspection Winder

Yarn Inspection Winder

Model :

Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details


Yarn inspection winder is professional designed to assess yarn grades, thick places, thin places, neps, hairiness when yarn wounded on a tapered black board. It can offer a fast and simple overview of yarn quality data.
Yarn inspection winder


GB/T 398  GB 403  GB/T 9996  GB/T 5324  FZ/T 32004  FZ/T 32005  ASTM D2255


  • Adjustable speed can meet different testing requirements.
  • Different models with various board dimension are applicable for different standards.
  • High quality motor provides lower running sound and longer service life.


Item Detail
Board Black anodized aluminium board
Dimension of board 250mm×180mm×2.5mm, 250mm×220mm×2.5mm or 225mm×600mm×155mm
Winder density  7, 9, 11, 13, 15, 19 or 45
Speed   0-350r/min
Power supply 220V 50Hz
Dimension 700mm×500mm×280mm
Net weight  27kg


No. Product
2020201 Yarn inspection winder
2020202 Yarn inspection winder (ASTM)
