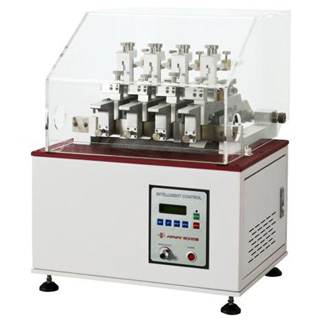

Wyzenbeek (Oscillatory) Abrasion Tester

Wyzenbeek (Oscillatory) Abrasion Tester

Model :T332
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Wyzenbeek (Oscillatory) Abrasion Tester
  • Wyzenbeek (Oscillatory) Abrasion Tester

Overview

Wyzenbeek Abrasion Tester which is also called as Oscillatory cylinder abrasion tester is to determine the abrasion resistance of woven textile fabrics using the oscillatory cylinder method. The specimen is measured by subjecting to unidirectional rubbing under certain pressure, tension and abrasive action. After testing, the specimens are evaluated by rupture, percentage loss in breaking loss and visual changes. Oscillatory cylinder tester is especially suitable to evaluate the abrasion resistance property of automobile decorating material and synthetic leather.
Oscillatory (Wyzenbeek) Abrasion Tester

Standards

ASTM D4157, ASTM D3597, FED-STD-191/5304, SAE J948, SAE J1530, GM 2756M, Toyota TSL 5101G 3.9.4, BS EN ISO 12402-2, LP-463KB-06-01, LP-463KC-04-01

Feature

  • Adjustable pressure, tension and rotational rate.
  • Applicable to different materials with various thicknesses.
  • Auto stop when reaching the preset terminal point.
  • High quality motor provides lower running sound and longer service life.

Specification

Item Detail
Position 4
Arc of surface 76mm
Running rate 90rpm
Tension calibrated mass 340g, adjust tension 4.45N(1lbf)~26.7N(6lbf)
Pressure calibrated mass 150g, adjust pressure 4.45N(1lbf)~15.575N(3.5lbf)
Counting range 0-999999
Power supply 220V 50Hz
Dimension 570mm×590mm×720mm
22.44inch×23.23inch×28.35inch
Net weight 65kg
143.3lb

Configuration

No. Product
2033201 Oscillatory (Wyzenbeek) abrasion tester
2033202 Sponge rubber pressure pad
2033203 #10 Cotton Duck
2033204 Wire screen
2033205 Grit sandpaper
2033206 Nylon brush
2033207 Mild household detergent solution
2033208 Air supply, with regulated nozzle
