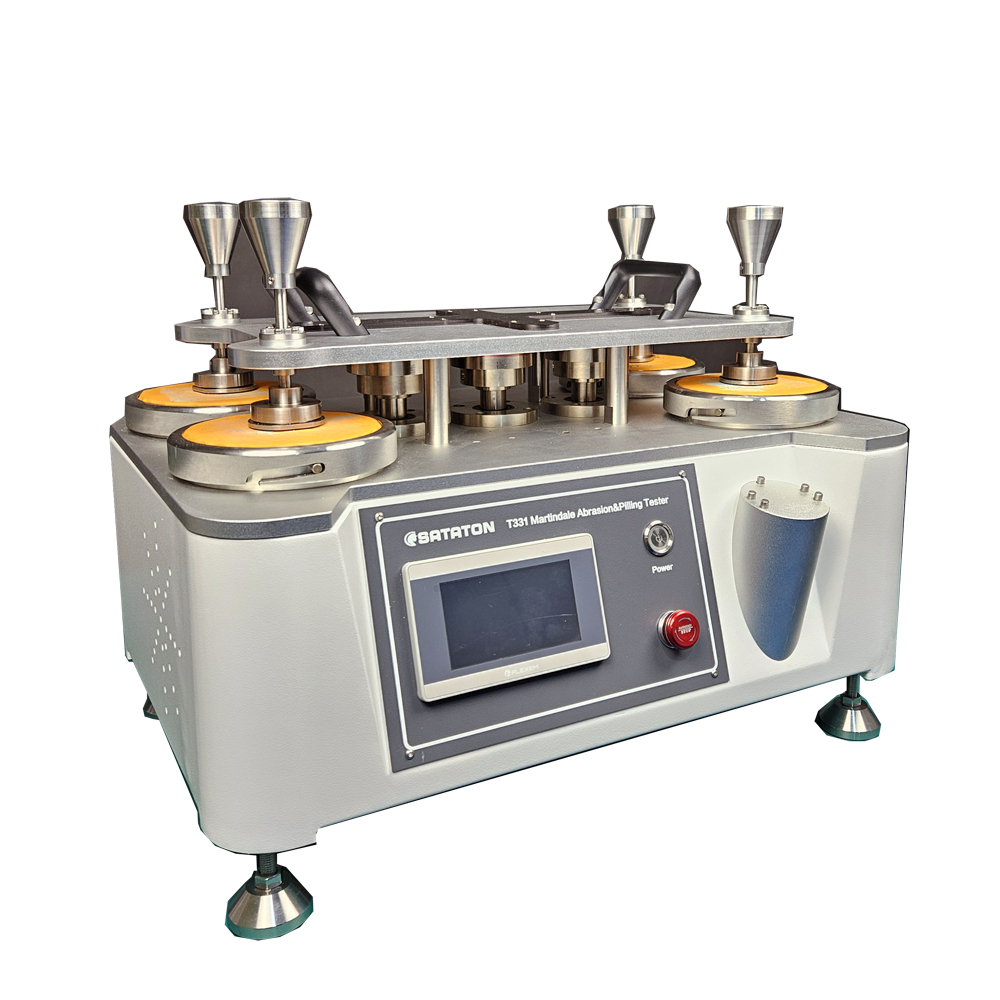

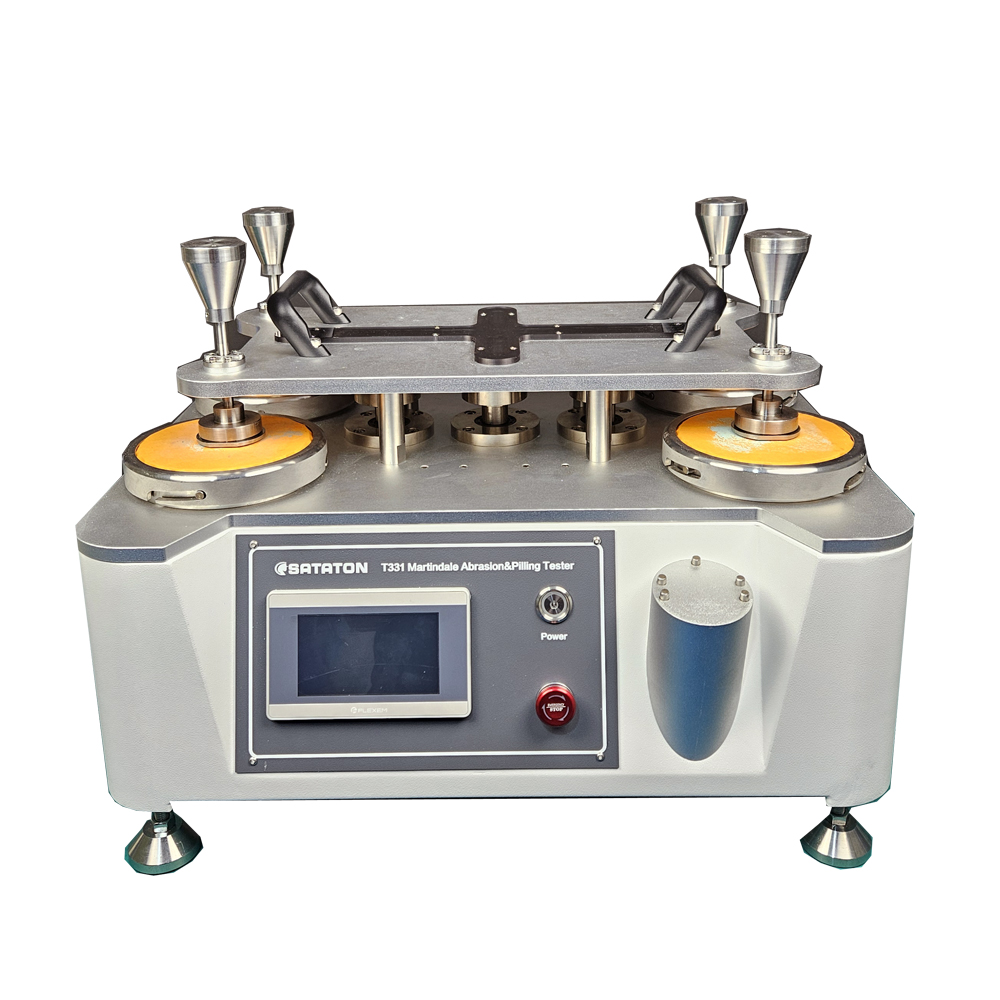

Martindale Abrasion and Pilling Tester

Overview

By providing a defined load, a translational movement tracing a Lissajous figure and abrasive medium, martindale abrasion tester is professional designed for determining of the abrasion resistance of fabrics including specimen breakdown, mass loss and appearance change. The tester can also use to determine the resistance to pilling and surface change of textile fabrics. With accessories, the tester is to determine abrasion resistance of lining and insock for personal protective footwear. It is widely used to evaluate the properties of clothes fabrics, coating materials, wool fabrics, nonwovens and other special materials for protective equipment.

Standards

BS EN 943 GB /T 4802.2 M&S P140  M&S P19 ISO 12945-2 JIS L1096  ISO 17076-2 ASTM D4966 ASTM D4970  BS 3424 IWSTM 112 EN 343  EN 530 EN 13770 BS EN 15973  ISO 12947 BS 2543 GB /T 13775  GB /T 21196 ISO 20344 ISO 5470-2  IWTO 40 IWSTM 196 BS EN 14605  BS EN 14465 BS EN 14325 JIS L1096  SN 198525 BS 5690 NEXT 18  M&S P140 EN 388 M&S P17  M&S P18C M&S P19 BS EN 16094  BS EN 388 WSP 020.5.R3 (12) ARCADIA AG 32  ARCADIA AG 34 ARCADIA AG 35 IS 12673  BS EN ISO 17704 BS EN ISO 26082-1 IUP 48-2  IUP 53-1  SFS 4328   ARCADIA AG 26  GB /T 21196 NEXT 26 GMW 15377

Feature

• Microprocessor controlled touch screen with bilingual (Chinese and English) to operate.
• Pre-programmable testing positions can count and set individually.
• User friendly loading and unloading specimen holder and changeable weights meets different testing requirements.

Specification

Item	Detail
Position	4, 6 or 9
Counting range	0-999999
Longitudinal and transverse directions of guide plate	60.5±0.5mm or 24±0.5mm
Loading pieces	595g（9kpa）or 795（12kpa）
Specimen holder	φ28.8mm or φ90mm
Rotational speed	Adjustable 20-70rpm
Power supply	220 AC  50Hz
Dimension	565mm×565mm×315mm 22.24inch×22.24inch×12.40inch
Net weight	40kg  88.18lb

Configuration

No.	Product
2033101	Martindale abrasion tester (4 head)
2033102	Martindale abrasion tester (6 head)
2033103	Martindale abrasion tester (9 head)
2033104	9kpa loading pieces
2033105	12kpa loading pieces
2033106	Specimen mounting weight
2033107	38mm specimen cutter
2033108	140mm specimen cutter
2033109	Wool abradant fabric
2033110	Backing foam
2033111	Woven wool felt disc φ140mm
2033112	Woven wool felt piece 1m x 1.5m
2033113	Nonwoven felt disc φ140mm
2033114	Nonwoven felt piece 1m x 1.8m
2033115	Felt disc φ90mm
2033116	F2 abrasion sheets
2033117	180g silicon carbide sheets
2033118	EMPA photographs for pilling test (knitted)
2033119	EMPA photographs for pilling test (woven)
2033120	SM 50 Photographs
