Dynamic Seam Fatigue Tester

Dynamic Seam Fatigue Tester

Model :

H203
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Dynamic seam fatigue tester is a great tool to determine the productivity and quality of the finished textile. Based on the requirements of ASTM D4033, the tester is to measure the seam openings caused by yarn slippage with dynamic loading. The tester provides constant specific pressure on the sewn samples at a certain frequency. The tested specimens are evaluated by seam opening conditions.

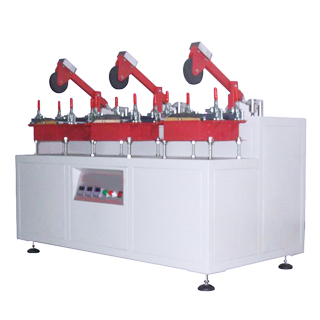

Dynamic seam fatigue tester

Standards

ASTM D4033

Feature

  • Three positions for testing at one time.
  • Individual preset and count timer for each position.
  • Adjustable height of impact can meet different testing requirements.

Specification

Item Detail
Frequency  25±2 per min
Impact height  5inch, 5.5inch, 6inch, 6.5inch, 7inch
Impact weight 3.75kg
Timer 0-9999
Power supply 380V 50Hz
Dimension 1600mm×900mm×1500mm
66.92inch×35.43inch×59.06inch
Net weight 335kg
738.55lb

Configuration

No. Product
0820301 Dynamic seam fatigue tester (Three position)
0820302 Dynamic seam fatigue tester (Six position)
0820303 Compressed plate
