Water Vapor Permeability Tester

Water Vapor Permeability Tester

Model :

L504
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

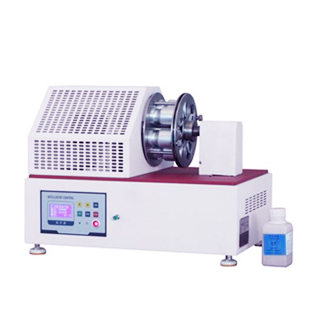

Water vapor permeability tester is for measuring the water vapor permeability of leather or synthetic materials for shoes or personal protective equipment. The tester provides certain rotary speed for holder and timer for counting the rotating number. The operator can calculate the water vapor permeability by weight changes of desiccants. It is widely used to determine the wearing comfort performance for shoes or personal protective equipment.
Water vapor permeability tester

Standards

ISO 20344  SATRA TM172  BS 3144

Feature

  • Microprocessor control system provides more accurate testing performance.
  • LCD display with button setting panel is easy to use.
  • Equipped with movable safety shield to provide safer testing performance.

Specification

Item Detail
Diameter of jar  Φ30mm
Jar number 6
Rotary speed of sample holder  75±5rpm
Rotary speed of fan 1400±100rpm
Power supply 220V 50Hz
Dimension  670mm×440mm×550mm
26.38inch×17.32inch×21.65inch
Net weight  75kg
165.35lb

Configuration

No. Product
1250401 Water vapor permeability tester
1250402 Jar kit
1250403  Digital Balance
1250404 Pre-flexing apparatus
