Rotary Rubbing Fastness Tester

Rotary Rubbing Fastness Tester

Model :

L102
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Rotary rubbing fastness tester is designed to assess the degree of damage and transfer of a material’s surface color during mild dry or wet abrasion. The tester is applicable to all footwear uppers, linings and insocks irrespective of the material, in order to assess suitability for end use.

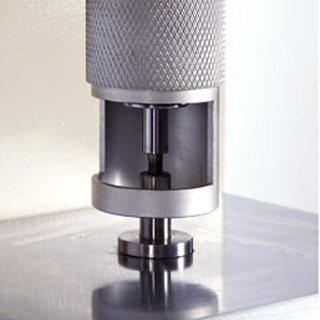

Rotary rubbing fastness tester

Standards

QB/T2882  ISO 17700  SATRA TM8  SATRATM14  BS 1006  BS5131

Feature

  • Intelligent control system provides stable performance.
  • LCD display with parameter setting panel.
  • High quality motor provides lower running sound and longer service life.

Specification

Item Detail
Dimension of specimen 60mm×60mm
Rotary speed 149±4.8cpm
Circular pad 25mm(outside diameter) 3mm(bore diameter)
Loading weight 7.1±0.2N  24.5±0.5N
Power supply  220V 50Hz
Dimension 300mm×450mm×500mm
11.81inch×17.72inch×19.69inch
Net weight 35kg
77.16lb

Configuration

No. Product
1210201 Rotary rubbing fastness tester
1210202 Grey scale
1210203 Balance
1210304 Assessment cabinet (T341)
