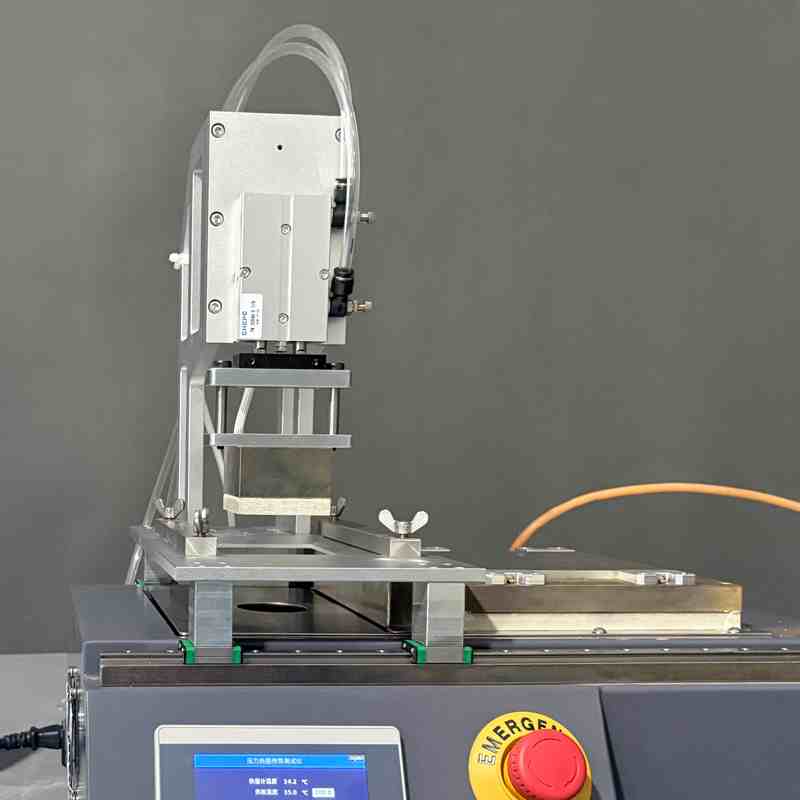

Conductive and Compressive Heat Resistance Tester
Model :T416
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
Overview
Conductive and compressive heat resistance tester (CCHR) is professional designed for evaluation of the thermal protective property of materials which is used for PPE. The tester can provide certain hot surface for tested material exposed under limited time and limited pressure. It is for predicting the thermal hazard or fire risk of materials and products according to ASTM F1060 and NFPA 1971, ANSI 105.
Standards
ASTM F1060, NFPA 1971, ANSI 105
Feature
- Touch screen control panel.
- Real-time curve display computer software.
- Pre-adjusting pressure and pressure measurement device.
- Excel report exported function.
Specification
| Item | Detail |
| Temperature | Up to 400℃ |
| Hot plate | 200*200mm |
| Surface plate | 140*140mm |
| Sensor | Copper calorimeter |
| Pressure display | kPa or psi |
| Calibration interface | Yes |
| Power supply | 220V, 50/60HZ |
| Dimensions | 550mm×520mm×600mm |
| Weight | 35kg |
Configuration
| No. | Product |
| 2041601 | Conductive and compressive heat resistance tester |
| 2041602 | Test software |
