Single Flame Source Chamber

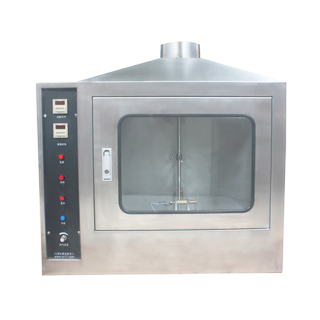

Single Flame Source Chamber

Model :

F503
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Single flame source chamber based on the principle of Kleinbrenner is professional designed for determining the ignitability of flat products such as wall, roof, floor-covering by direct small flame impingement under zero impressed irradiance. By measuring the spread of a small flame up the vertical surface of the tested flat specimen, the flaming droplets, the chamber can provide a precise assessment of potential hazard, fire risk and safety precautions of the tested products.
Single flame source chamber,Kleinbrenner single flame tester,ISO 11925

Standards

ISO 11925  GB/T 8626  DIN 53483  DIN 4102.1

Feature

  • Adjustable burner can provide premixed flames at the angle of 45° and 90°.
  • Stainless steel chamber with heat resistant observation window.
  • Adjustable sample holder frame with two optional dimensions holders to meet different requirements.
  • Digital timers for measuring times.

Specification

Item Detail
Angle of burner  45° or 90°
Exposing time 0-99s±0.5s
Movement of frame  longitudinal and lateral
Power supply 220V 50Hz
Dimension 710mm×400mm×600mm
27.95inch×15.75inch×23.62inch
Net weight  45kg
99.2lb

Configuration

No. Product
0650301 Single flame source chamber
0650302 Sample holder kit
0650303 Handhold thermocouple
