Portable Air Permeability Tester

Portable Air Permeability Tester

Model :T378P
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Portable Air Permeability Tester
  • Portable Air Permeability Tester

Overview

Portable air permeability tester is professional designed to determine the permeability of materials to air. By testing the rate of flow of air passing perpendicularly through a given area of tested sample under a given pressure over a given time period, the tester can provide results of air permeability performance by calculation the indices. The air permeability testing instrument is applicable to many type of materials, including industrial fabrics, nonwovens, made-up textiles, paper and board, foam and other materials. It can provide on-line air permeability test and be suitable for manufacturing industry to check the product quality on the production line.
Portable Air Permeability Tester

Standards

GB/T 5453  DIN 53887  ISO 9237  ASTM D737  JIS L1096  TAPPI T251  EDANA 140.2  AFNOR G07-111  BS 5636  EN ISO 7231  ASTM D3574

Feature

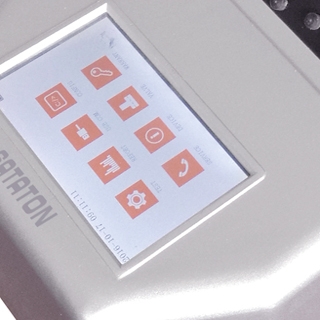

  • Color touch screen control mode is easy to operate.
  • Automatic testing and calculating system is more convenient for continuous tests.
  • Portable tester is suitable for production line evaluation.
  • Support USB data transport.
  • Equipped lithium battery as power supply.

Specification

Item Detail
Pressure range 0-200Pa
Accuracy ≤±2%
Flow range ≤5000mm/s
Testing time ≥5s
Testing area 20cm2
Units mm/s, cfm, cm3/cm2/s, L/m2/s,L/dm2/min,m3/m2/min,m3/m2/h,dm3/s at 25cm2
Power supply Battery 36W
Dimension 340mm×160mm×200mm
13.39inch×6.30inch×7.87inch
Net weight 4kg
8.82lb

Configuration

No. Product
2037808 Portable air permeability tester
