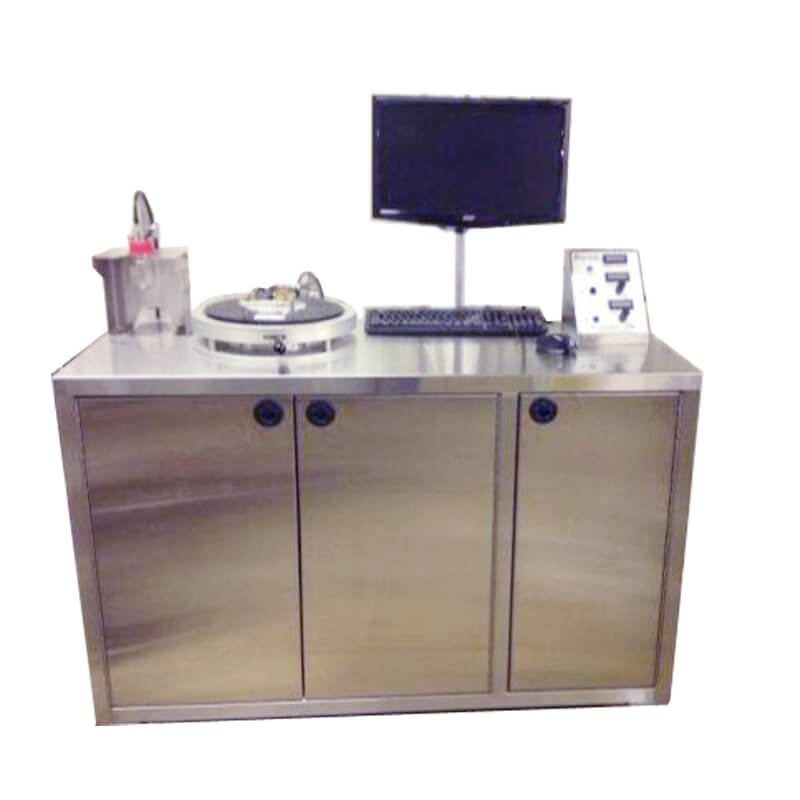

Microbial Barrier Aerosol Filtration Tester

Microbial Barrier Aerosol Filtration Tester

Model :T471
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Microbial Barrier Aerosol Filtration Tester

Overview

Microbial barrier aerosol filtration tester is to measure the aerosol filtration performance of porous packaging material by creating a certain particles and calculating the filtering efficiency of the material by counting chanllenge side and filtrate side. As a quantitative procedure for rapid determining the microbial barrier properties of materil, microbial barrier aerosol filtration tester is applicable to packages or material for packages which arte terminally sterilized medical devices.

ASTM F2638 porous microbial barriers test

Standards

ASTM F2638, YY/T 0681.17

Feature

  • Touch screen control panel with English interface.
  • PLC control system to provide stable test performance.
  • Standard test sample holder with mechanical locking structure.

Specification

Item Detail
Sample holder Φ100mm
Mesh 304 stainless steel
Test particle PSL
Particle counter Two units
Manometer 0-3000Pa
Filter 0.22μm
Burner adjust height 30mm
Power supply 220 AC  50Hz
Dimension 1350mm×500mm×950mm
53.15inch×19.68inch×37.4inch
Net weight 115 kg
253.5lb

Configuration

No. Product
2047101 Microbial barrier aerosol filtration tester
