Horizontal Vertical Flame Chamber

Horizontal Vertical Flame Chamber

Model :

F204
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
  • Product Details

Overview

Horizontal vertical flame chamber is to determine the flammability of polymeric materials used for parts in devices and appliances. The flame chamber uses standard burner to simulate small open flame or radiant heat source which is as closely as possible actual effects occurring in practice and controlled chamber under certain testing condition to evaluate and describe the flammability properties of tested materials.
Horizontal vertical flame chamber

Standards

UL 94  GB/T 5169  GB/T 2408  IEC 60695  ASTM D3801  ASTM D4804  ASTM D635

Feature

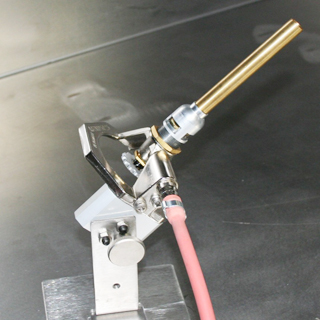

  • Adjustable burner is easy to control the height and angle.

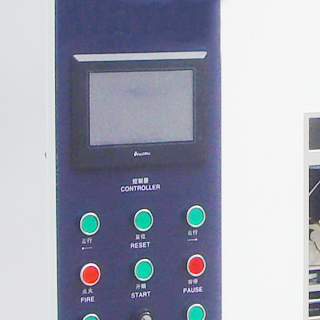

  • Automatic testing mode realizes one operator to complete the whole testing process.
  • Operation holes are ergonomic design.
  • High power exhausting system can avoid corrosion by combustion fog.

Specification

Item Detail
Capacity 0.8m³
Height of flame 10-200mm
Angle of flame 0-45°
Flow of flame 20-1000mm/min
Pressure of flame  5-200mm wc
Burner height Up to 50mm
Vertical distance Up to 450mm
Horizontal distance Up to 180mm
Burning time  0-99.99s
Afterflame timer  0.00-999.99s
Afterglow timer  0.00-999.99s
Inside chamber Black
Power supply 220V 50Hz
Dimension 1120mm×600mm×1020mm
44.09inch×23.62inch×40.16inch
Net weight  102kg
224.87lb

Configuration

No. Product
0620401  Horizontal vertical flame chamber

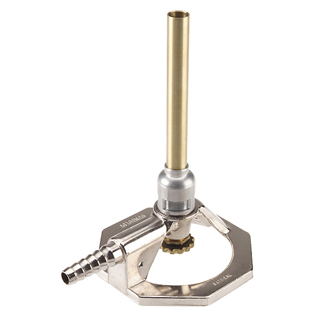

0620402 Standard burner
0620403 Sample holder kit
